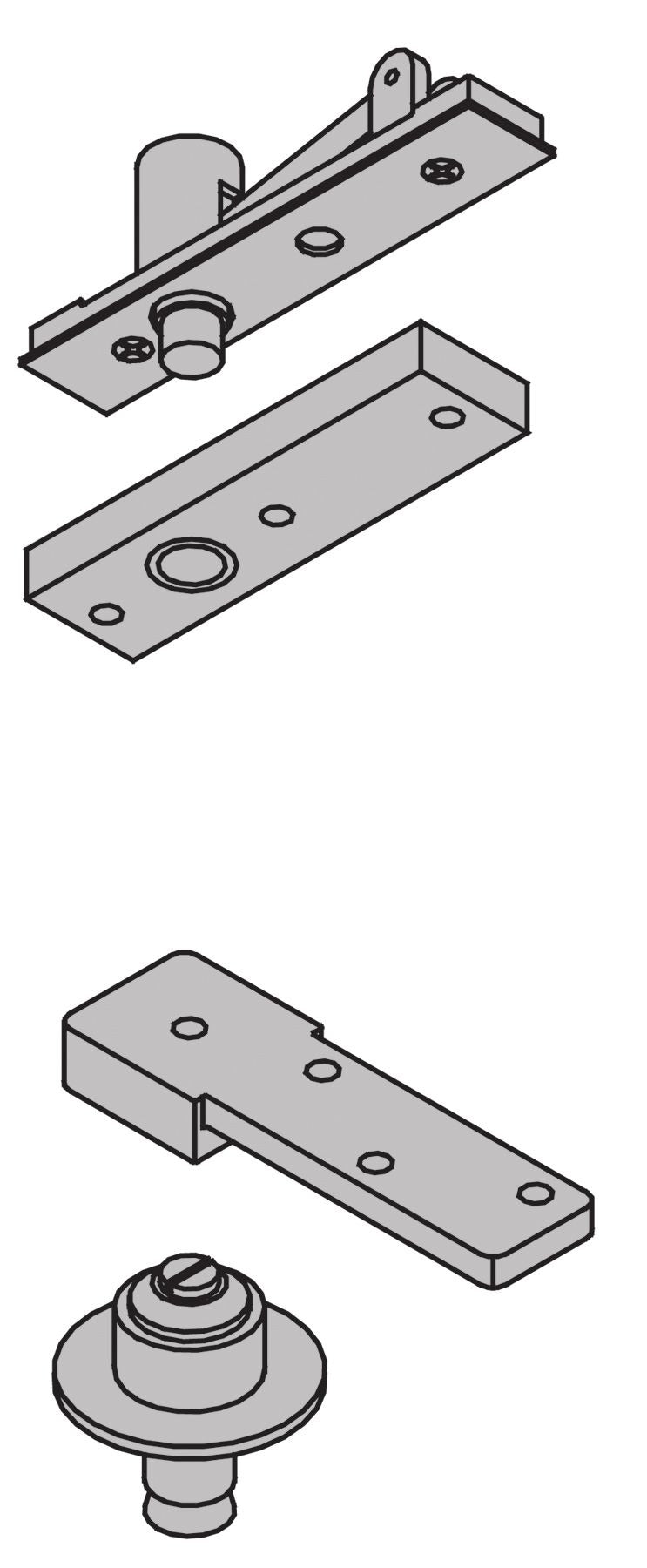

Ives 7253SET10B Center Hung Pivot Set Oil Rubbed Bronze

Product Description

The IVES 7253SET10B is a center hung pivot set designed for heavy-duty door applications, rated to support doors up to 300 pounds. Built with an oil rubbed bronze finish, this pivot set provides both structural performance and a refined architectural appearance. The set measures 6.5 inches in length, 3.2 inches in width, and 2.9 inches in height, with a 1.5-inch center hung offset. It is installed by licensed finish carpenters, door hardware specialists, and commercial contractors working on wood or hollow metal door assemblies in new construction and renovation projects.

This pivot set is suited for commercial and residential door installations where conventional butt hinges are not appropriate or preferred. Center hung pivots are commonly specified in high-traffic entryways, storefront doors, and architectural applications where a clean, hardware-minimal appearance is desired. The oil rubbed bronze finish coordinates with matching IVES hardware accessories for a consistent door package.

Key Features

• 300-pound door weight capacity for heavy-duty performance
• 1.5-inch center hung offset for proper door alignment
• Oil rubbed bronze finish for architectural coordination
• Compact profile at 6.5 inches long, 3.2 inches wide, and 2.9 inches tall
• Sold as a complete set, one unit per order
• Weighs 3 pounds for straightforward handling during installation

Compatibility

Designed as an OEM-style replacement or new-install center hung pivot for commercial and residential doors requiring a 1.5-inch center hung pivot configuration and oil rubbed bronze finish hardware.

Installation Notes

Installation is performed by experienced door hardware technicians or finish carpenters following the door manufacturer's template and local building code requirements. All door hardware should be installed with the door panel secured and supported to prevent movement during fastening. Confirm that the door frame and floor substrate are structurally sound and capable of bearing the rated door load before installation. Follow ANSI and BHMA guidelines for pivot hardware placement and fastener selection.
