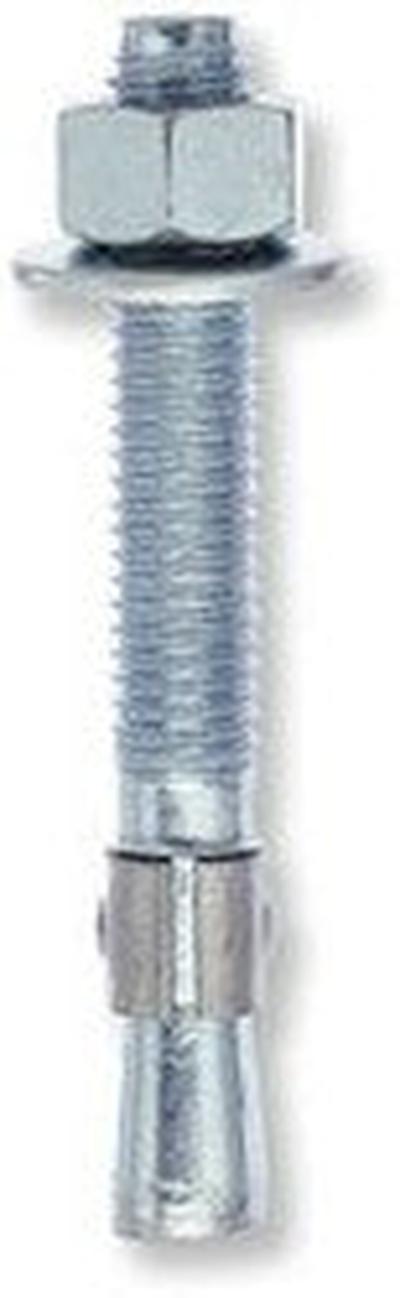

ITW Red Head SWW1254 Trubolt 1/2 x 5-1/2 Plain 316 Stainless Steel Expansion Wedge Anchor 25/BX

Product Description

The ITW Red Head SWW1254 Trubolt expansion wedge anchor is made from stainless steel and designed for reliable anchoring in various applications. This anchor features a fully threaded body for enhanced holding power and ease of installation.

• Made from durable stainless steel for strength
• Fully threaded design for versatility in applications
• Stamps on the anchor for verified installation depth

Product Highlights

This product provides a dependable solution for securing fixtures, equipment, and structural elements in concrete.

Product Information

Standard Information

• Brand: ITW Red Head
• Manufacturer Part Number: SWW1254

Technical Specifications

• Finish: Plain
• Diameter: 1/2 inches
• Material: Stainless Steel
• Anchor Type: Wedge Expansion
• Thread Size: 1/2-13
• Thread Length: 3 inches
• Drill Bit Size: 1/2 inches
• Ultimate Shear: 4760 pounds
• Ultimate Tension: 5100 pounds
• Minimum Embedment: 2-1/4 inches
• Maximum Work Thickness: 2-3/4 inches
