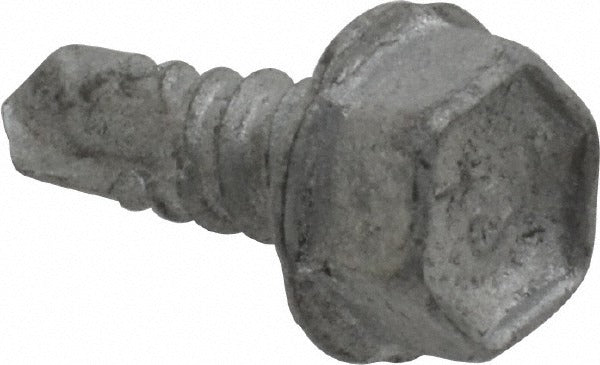

Itw Buildex 560007 Self Drilling Screw No 10 500 Pack

Product Description

The ITW BUILDEX 560007 is a No. 10 self-drilling screw designed for fast, reliable fastening in steel-to-steel and steel-to-substrate applications. Featuring a hex washer head with a hex drive, this screw drills its own pilot hole and cuts its own threads in a single pass, eliminating the need for pre-drilling. The No. 3 drill point handles light to medium gauge steel with ease. The 1/2 inch length under head keeps the fastener profile low while delivering solid holding strength. This package contains 500 screws, making it a practical choice for production work or recurring service calls.

This screw is commonly used in metal framing, HVAC ductwork assembly, light steel construction, and general sheet metal fabrication. The hex washer head provides a broad bearing surface that resists pull-through, while the hex drive allows use with standard nut drivers and power tools for high-speed installation. Licensed sheet metal workers, HVAC installers, and general contractors rely on this fastener type for repetitive fastening tasks across both residential and light commercial projects.

Key Features

• No. 3 drill point self-taps through light to medium gauge steel without pre-drilling
• Hex washer head provides a wide bearing surface to reduce pull-through
• Hex drive compatible with standard nut drivers and impact drivers
• No. 10-16 thread size delivers consistent thread engagement in sheet metal
• Steel construction for strength in structural and mechanical fastening applications
• 500-count package suited for high-volume installation work

Compatibility

Designed as an OEM-style replacement and general-use fastener for light gauge steel sheet metal, metal framing, and HVAC ductwork assemblies requiring a No. 10 self-drilling screw with a hex washer head.

Installation Notes

Installation is performed by sheet metal workers, HVAC technicians, or general contractors using a standard hex nut driver or variable-speed drill. Ensure the base material gauge is appropriate for the No. 3 drill point before driving. Do not overdrive the fastener, as the hex washer head can distort the substrate or strip the threads. Follow applicable codes such as the SMACNA duct construction standards for HVAC ductwork fastening patterns.
