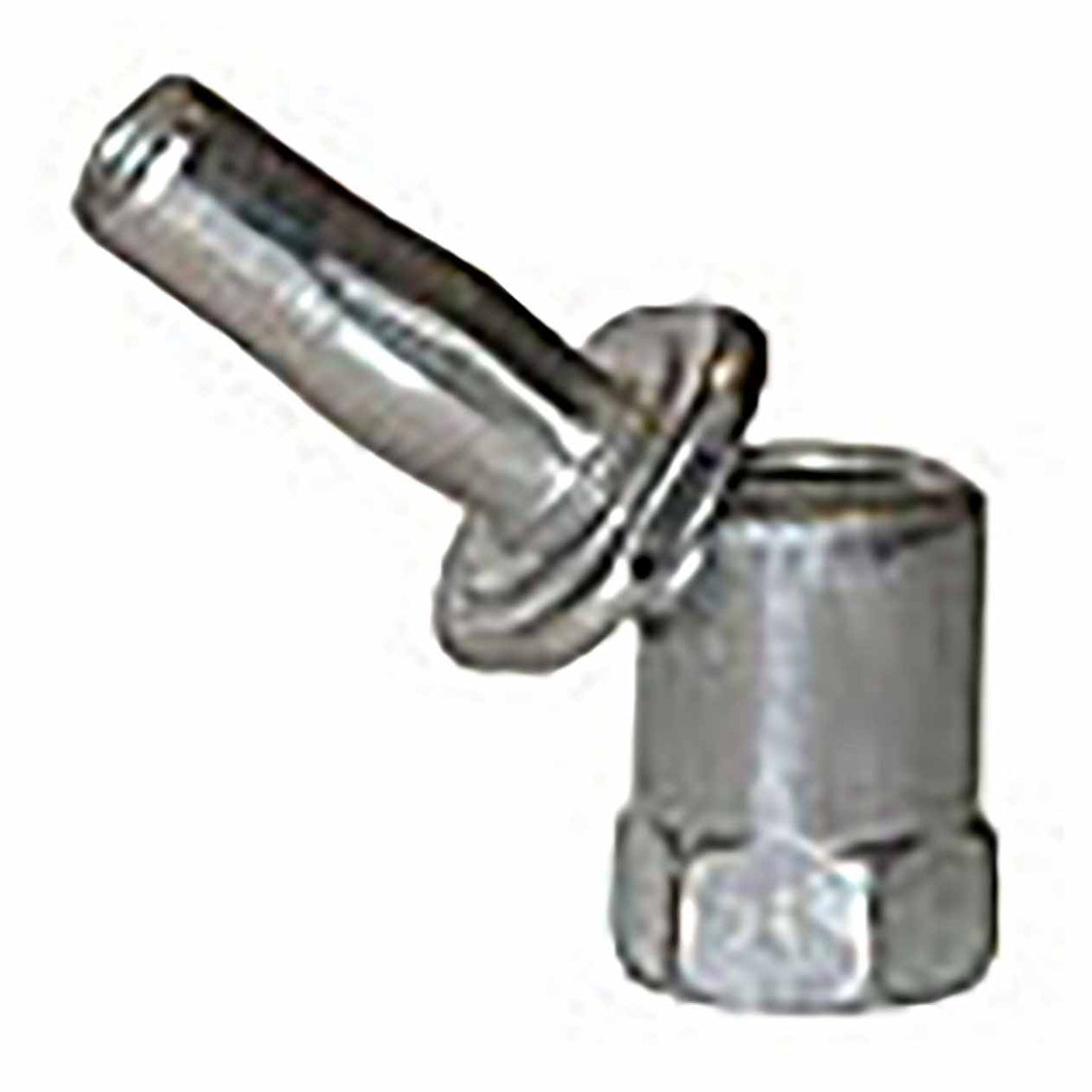

Itw Brands 8294922 Buildex Steel Threaded Rod Anchor 1 in L x 25/64 in Dia

Product Description

The ITW BRANDS 8294922 Buildex steel threaded rod anchor, also known as a Sammys X-Press SXP 20, is designed for metal deck applications. It measures 1 inch in length and 25/64 inch in diameter. Features a swivel design and installs in one step without pre-drilling, reducing installation time and cost. Made in USA.

• Threaded rod anchor
• Swivel design
• 1-step installation process

Product Highlights

This steel threaded rod anchor is designed for quick and easy installation in metal deck applications, saving time and reducing costs.

Product Information

Standard Information

• Brand: ITW BRANDS
• Manufacturer Part Number: 8294922
• Country of Origin: USA

Technical Specifications

• Diameter: 25/64 in
• Finish: Electro-Zinc
• Head Type: 5/8 in AF End-Drilled Head
• Item Name: Threaded Rod Anchor
• Length: 1 in
• Material Grade: C1022 Screw, C1010 Cap
• Material: Steel
• Maximum Load: 1061 lb (22 ga Vertical), 829 lb (45 deg off Vertical), 750 lb (2 in Pipe), 170 lb Vertical (Luminaire), 80 lb at 45 deg (Luminaire), 283 lb Vertical (Conduit and Cable), 233 lb at 45 deg (Conduit and Cable) UL Test, 635 lb (2 in Pipe) FM Test
• Model: SXP 20
• Mounting: Swivel
• Rod Size: 3/8 IN
• Sub Brand: Sammys X-Press
• Thread Size: 3/8-16
• Series/Model: Model SXP 20
• Screw Size: 3/8-16
• Industry Standards: C/US UL And UL E245248, EX15565 And EX5098 Listed, FM 3031269 Approved
• Maximum Pipe Size: 2 IN
• Anchor Diameter: 25/64 IN
