Itw Brands 8153922 Buildex Threaded Rod Anchor XP 35

Product Description

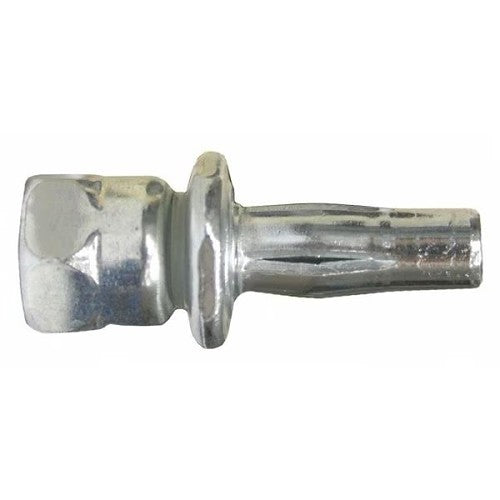

The ITW BRANDS 8153922 Buildex Threaded Rod Anchor XP 35 is a steel anchor with an electro-zinc finish. It is designed for vertical mounting and installs in seconds. The anchor is suitable for use in metal decks, purlins, or tubular steel for hanging threaded rods. It reduces installation time and costs.

• Threaded rod anchor
• Vertical mounting
• Electro-Zinc finish

Product Highlights

Installs vertically into metal deck, purlin or tubular steel for hanging threaded rod. Installs in seconds, saving time and installation costs.

Product Information

Standard Information

• Brand: ITW BRANDS
• Manufacturer Part Number: 8153922
• Country of Origin: USA

Technical Specifications

• Rod Size: 3/8-16
• Overall Length: 1 IN
• Head Type: AF End-Drilled Head
• Material: Steel
• Finish/Color: Electro-Zinc
• Mounting: Vertical
• Head Diameter: 5/8 IN
• Hole Size: 25/64 IN
• Diameter: 25/64 in
• Model: XP 35
• Thread Size: 3/8 in
• Maximum Load (Ultimate Pullout): 1783 LB
• Maximum Load (UL): 1500 LB
• Maximum Load (FM): 940 And 1475 LB
• Minimum Thickness (UL): 0.029, 0.056, 0.059 And 0.06 IN
• Minimum Thickness (FM): 0.029 And 0.104 IN
• Maximum Thickness: 1/8 IN
• Industry Standards: UL E245248 And EX5098 Listed, FM 3020935 And 3031269 Approved
• Material Grade: C1022 Screw, C1010 Cap
• Sub Brand: Sammys X-Press
• Thread Type: UNC
• Finish: Electro-Zinc Plated
• Head Size: 5/8 in
• Load Capacity: 1783 lb
