Itw Brands 8139957 3/8 x 2 Sammy Wood Swivel Rod Anchor

Product Description

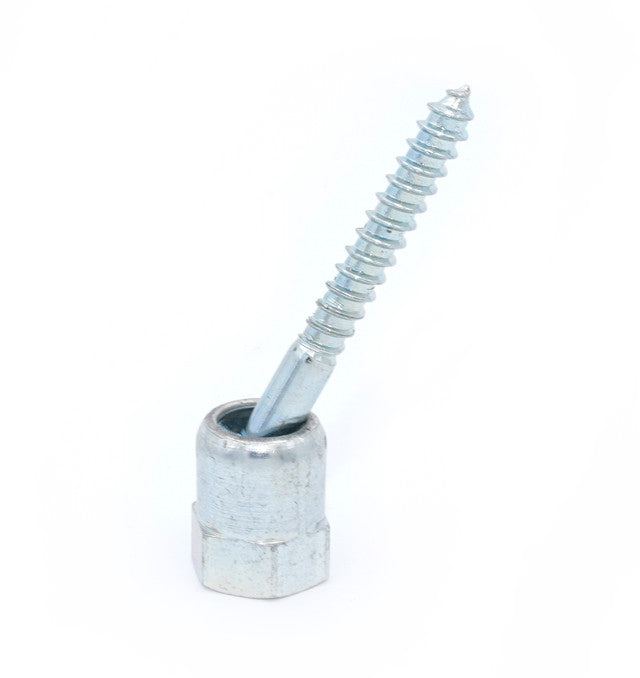

The ITW BRANDS 8139957 is a Sammy Swivel Head™ threaded rod anchor designed for wood applications. It features a 3/8-16 rod and 1/4 IN screw, with a swivel mounting. Constructed from steel with an Electro-Zinc finish, it offers a maximum ultimate pullout load of 1257 LB and is UL EX5098 Listed and FM 3020935 Approved.

• Sammys Swivel Head™ design

• Suitable for wood

• High load capacity

Product Highlights

This swivel rod anchor provides secure and reliable mounting for threaded rods in wood structures, with industry standard certifications.

Product Information

Standard Information

• Brand: ITW BRANDS

• Manufacturer Part Number: 8139957

Technical Specifications

• Series/Model: Model SH GST 20

• Rod Size: 3/8-16

• Screw Size: 1/4 IN

• Overall Length: 2 IN

• Maximum Load (Ultimate Pullout): 1257 LB

• Maximum Load (UL): 1050 LB

• Maximum Load (FM): 1475 LB

• Head Type: AF End-Drilled Head

• Material: Steel

• Finish/Color: Electro-Zinc

• Minimum Thickness: 1-1/2 IN

• Mounting: Swivel

• Industry Standards: UL EX5098 Listed, FM 3020935 Approved

• Head Diameter: 5/8 IN

• Quantity: 1
