Itw Brands 8054957 3/8 X 1-1/2 Sidewinder For Steel 3/8 Rod Horizontal

Product Description

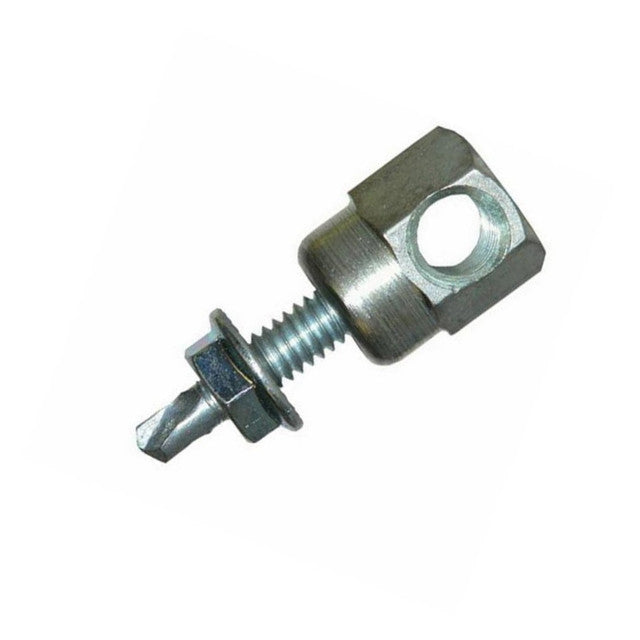

The ITW BRANDS 8054957 Sammys Sidewinder™ is a threaded rod anchor designed for horizontal mounting. It accommodates a 3/8-16 rod and #12-24 screw. Constructed from steel with a Climaseal and Electro-Zinc finish, it offers a maximum ultimate pullout load of 2375 LB, 1500 LB (UL), and 1475 LB (FM).

• Threaded rod anchor
• Horizontal mounting
• Steel construction
• Climaseal and Electro-Zinc finish
• UL and FM approved

Product Highlights

Threaded rod anchor with steel construction, Climaseal and Electro-Zinc finish, designed for horizontal mounting.

Product Information

Standard Information

• Brand: ITW BRANDS
• Manufacturer Part Number: 8054957

Technical Specifications

• Series/Model: Model SWDR 1.5
• Rod Size: 3/8-16
• Screw Size: #12-24
• Overall Length: 1-1/2 IN
• Maximum Load (Ultimate Pullout): 2375 LB
• Maximum Load (UL): 1500 LB
• Maximum Load (FM): 1475 LB
• Head Type: AF End-Drilled Head
• Material: Steel
• Finish/Color: Climaseal, Electro-Zinc
• Minimum Thickness: 0.188 - 3/16 IN
• Maximum Thickness: 1/2 IN
• Mounting: Horizontal
• Industry Standards: UL EX15565 And EX5098 Listed, FM 3020935 Approved
• Head Diameter: 5/8 IN
• UL And FM Maximum Pipe: 4 IN
