Itw Brands 8052957 Buildex Sammys Sidewinder SWD 20 2 in L x 1/4 in Dia

Product Description

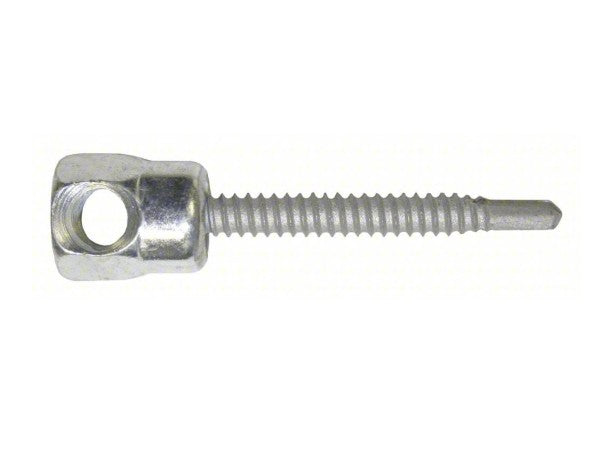

The ITW BRANDS 8052957 Buildex Sammys Sidewinder SWD 20 is a steel threaded rod anchor with climaseal electro-zinc finish. Designed for horizontal mounting, it features an AF end-drilled head and supports 3/8-16 rod with a 1/4-14 screw. It measures 2 inches in overall length and has a 5/8 inch head diameter.

• Threaded rod anchor
• For steel
• Horizontal mounting

Product Highlights

Steel threaded rod anchor with climaseal electro-zinc finish, designed for horizontal mounting.

Product Information

Standard Information

• Brand: ITW BRANDS
• Manufacturer Part Number: 8052957

Technical Specifications

• Series/Model: Model SWD 20
• Rod: 3/8-16
• Screw: 1/4-14
• Overall Length: 2 IN
• Maximum Load: 1477 LB (Ultimate Pullout)
• Head Type: AF End-Drilled Head
• Material: Steel
• Finish/Color: Climaseal, Electro-Zinc
• Minimum Thickness: 0.06 - 3/64 IN
• Maximum Thickness: 3/16 IN
• Mounting: Horizontal
• Other Physical Dimension: 5/8 IN Head Diameter
