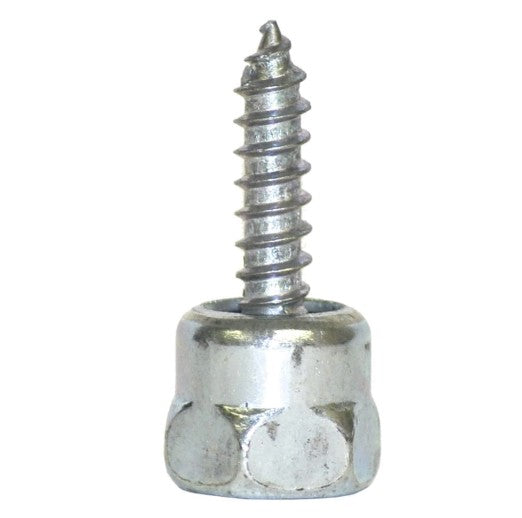

Itw Brands 8007957 Sammys GST 10 Steel Threaded Rod Anchor 1 in L x 1/4 in Dia

Product Description

The ITW BRANDS 8007957 Sammys GST 10 steel threaded rod anchor measures 1 inch in length and has a 1/4 inch diameter. This threaded rod anchor features electro-zinc finish and is designed for vertical mounting. It is ROHS compliant and UL EX6140 listed. It is suitable for use with 3/8-16 rods.

• Threaded Rod Anchor
• Electro-Zinc Finish
• Vertical Mounting

Product Highlights

The ITW BRANDS 8007957 is a steel threaded rod anchor with electro-zinc finish, designed for vertical mounting and is ROHS compliant and UL EX6140 listed.

Product Information

Standard Information

• Brand: ITW BRANDS
• Manufacturer Part Number: 8007957

Technical Specifications

• Series/Model: Model GST 10
• Rod Size: 3/8-16
• Screw Size: 1/4 IN
• Overall Length: 1 IN
• Maximum Load (UL): 300 LB
• Ultimate Pullout: 210 And 670 LB
• Head Type: AF End-Drilled Head
• Material: Steel
• Finish/Color: Electro-Zinc
• Minimum Thickness: 1-1/2 IN
• Mounting: Vertical
• Industry Standards: ROHS Compliant, UL EX6140 Listed
• Head Diameter: 5/8 IN
• UL Maximum Pipe: 1-1/2 IN
