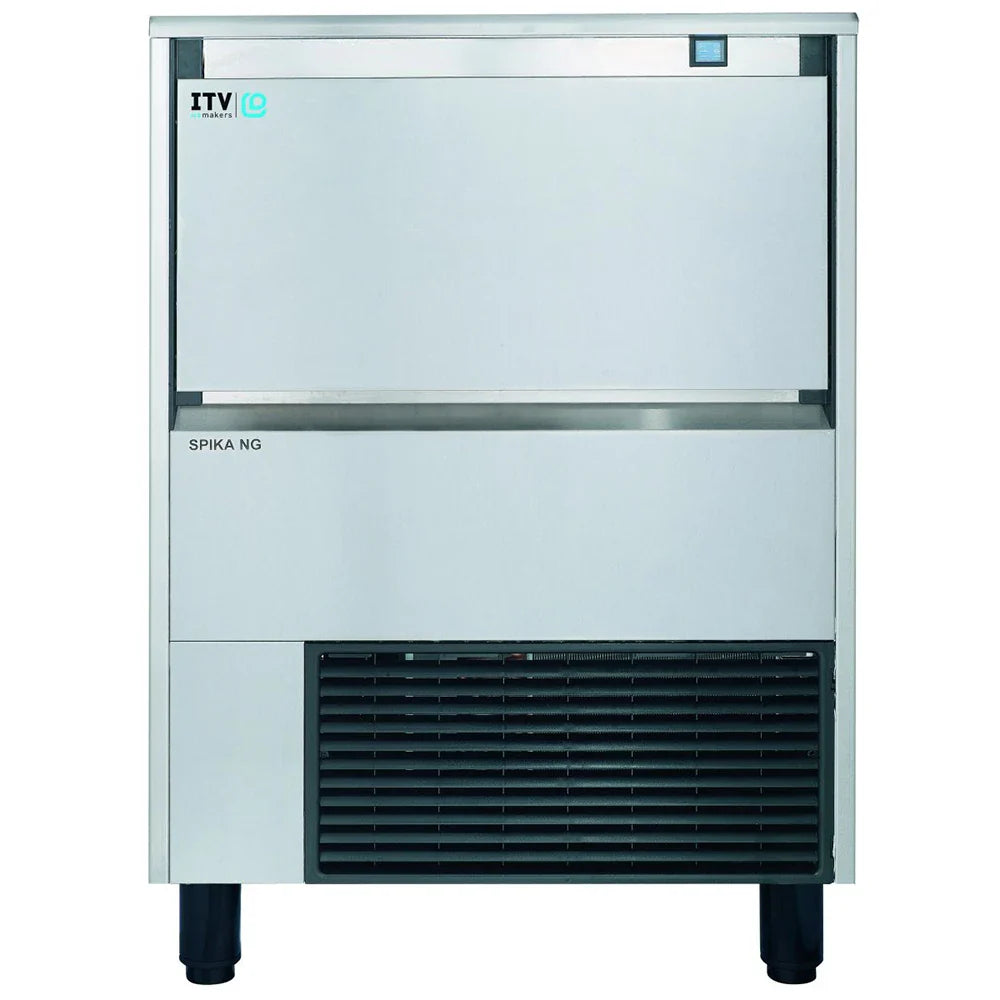

Itv Spika Ng 230 A1h Half Cube Undercounter Ice Machine 223 Lbs/Day 26 inchesW

Product Description

The ITV SPIKA NG 230 A1H is a half cube undercounter ice machine designed for commercial use, producing up to 223 pounds of ice daily with a 77-pound storage capacity. It features electronic controls for performance in extreme climates and uses natural R290 refrigerant. The unit has a front ventilation system for built-in installation and a "Never Stop" motor pump to prevent hard water deterioration. Constructed from stainless steel, it includes adjustable legs and an LED on/off switch.

• Electronic controls for enhanced performance in extreme climates.
• Front ventilation system and self-contained condenser for built-in installation.
• "Never Stop" motor pump without seals to prevent hard water deterioration.

Product Highlights

This commercial undercounter ice machine offers high daily production, efficient operation with R290 refrigerant, and durable stainless steel construction.

Product Information

Standard Information

• Brand: ITV
• Manufacturer Part Number: SPIKA NG 230 A1H

Technical Specifications

• Manufacturer: ITV Ice Makers
• Daily Production Capacity: 223 lb
• Ice Storage Capacity: 77 lb
• Compressor Type: Air Cooled
• Overall Dimensions (W x D x H): 25.99 x 27.57 x 38.29 inches
• Ice Cube Dimensions (W x D x H): 0.90 x 0.43 x 1.02 inches
• Design: Standard Height
• Drain Type: Gravity
• Front Style: Lift Door
• Frequency: 60 Hz
• Ice Type: Half Cube
• NEMA Plug: 5-15P
• Phase: 1
• Product Category: Undercounter Ice Machines
• Product Type: Ice Makers & Bins
• Refrigerant: R290 (Hydrocarbon)
• Series: Spika
• Suggested Use: Commercial
• Voltage: 115 V
• Water Inlet Connection: 0.38 in
• Ambient Temperature Range: 41 to 109 °F
• Water Temperature Range: 41 to 95 °F
• Pressure Range: 14.5 psi (1 bar) - 87 psi (6 bar)
• Certifications: cETLus, NSF, ENERGY STAR
• Weight: 141.00 lb
