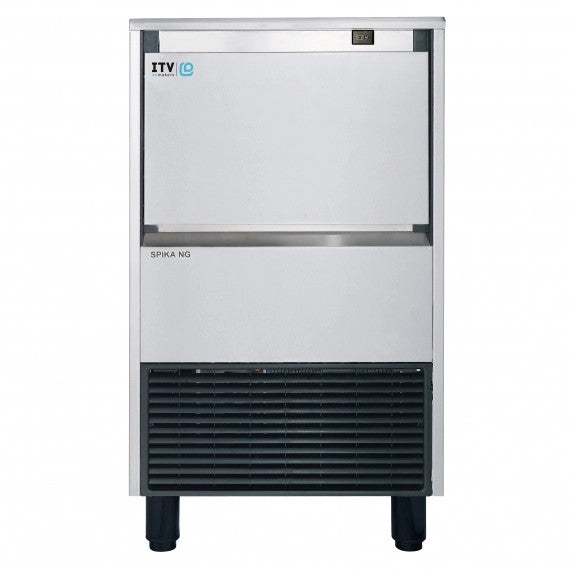

Itv SPIKA NG 160 A1H half cube undercounter ice maker 159 lbs/day 21 inchesW

Product Description

The ITV SPIKA NG 160 A1H is a 21-inch wide half cube undercounter ice maker designed for commercial use. Constructed from 304 stainless steel, this air-cooled unit produces up to 159 pounds of half cube ice per day and stores 44.1 pounds in its integrated bin. Ideal for school cafeterias and drive-thrus, it features a self-contained condenser and uses eco-friendly R290 refrigerant. Electronic controls adapt to extreme climates, ensuring optimal performance.

• Produces Half Classic American style ice cubes with a 44.1 lbs. ice storage capacity.
• Constructed of durable 304 stainless steel and utilizes an eco-friendly R290 refrigerant.
• Features an LED on/off switch and a cleaning switch for simplified operation and maintenance.

Product Highlights

This undercounter ice maker offers efficient ice production and storage, built with durable stainless steel and adaptive electronic controls for commercial environments.

Product Information

Standard Information

• Brand: ITV
• Manufacturer Part Number: SPIKA NG 160 A1H

Technical Specifications

• Manufacturer: ITV Ice Makers
• Daily Ice Production (lb): 159
• Ice Storage Capacity (lb): 44.1
• Cooling Type: Air Cooled

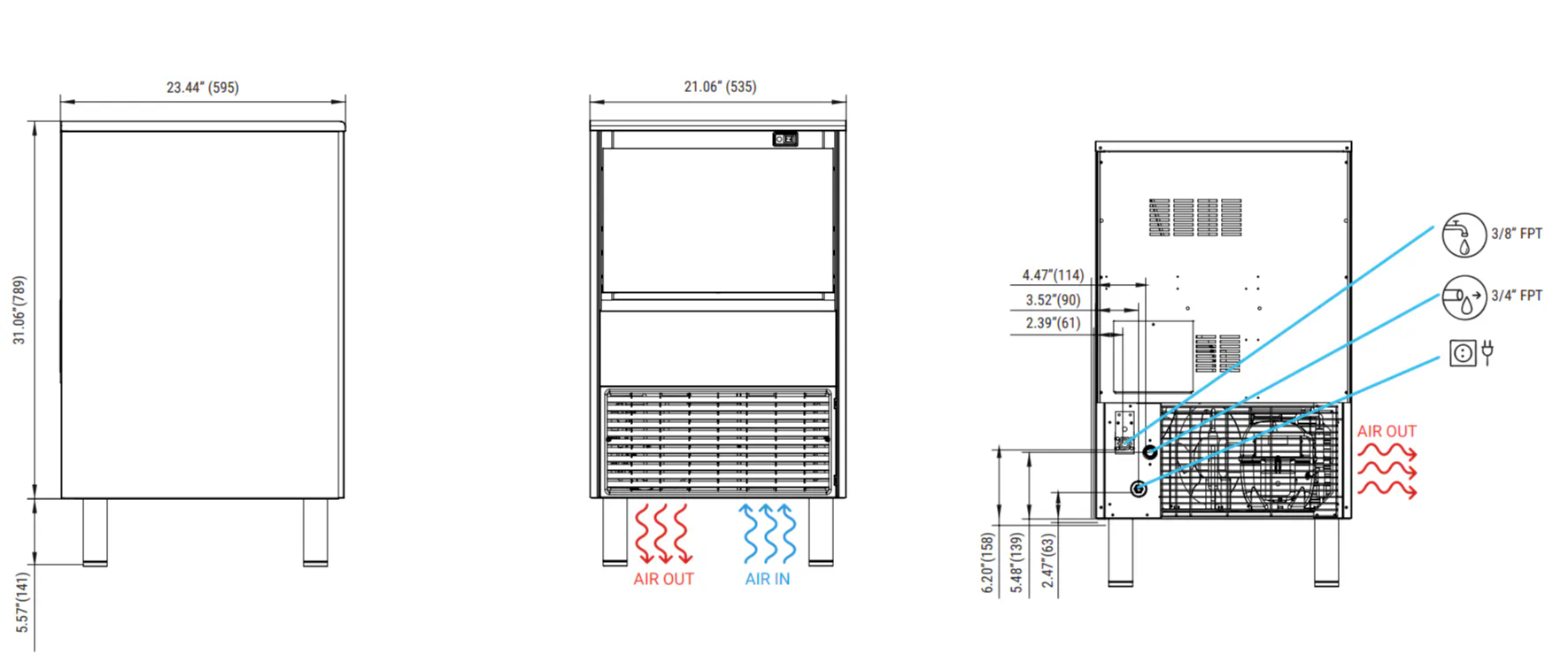

• Depth (in): 23.43
• Drain Type: Gravity
• Height (in): 37.07
• Frequency (Hz): 60
• Ice Type: Half Cube
• Application: Commercial
• Voltage (V): 115
• Width (in): 21.07
• Series: Spika
• Phase: 1
• Product Category: Undercounter Ice Makers
• Product Subcategory: Ice Makers & Bins
• Design: Standard Height
• Front Style: Lift Door
• NEMA Plug Type: 5-15P
• Refrigerant: R290 (Hydrocarbon)
• Water Inlet (in): 0.38
• Cubes per Cycle (Half Cube): 150
• Water Usage (Half Cube, 90°F-70°F): 22.2 gal/100lbs (4.5 L/hr)
• KWH/100 LBS-AMPS (Half Cube): 6.78-5.2
• Fuse Size: 15 A
• Tropicalized Machines: Class T
• Operating Temperature (Air): 41-109°F (5-43°C)
• Operating Temperature (Water): 41-95°F (5-35°C)
• Water Pressure (Min): 10 psi (0.7 bar)
• Water Pressure (Max): 85 psi (6 bar)
