Itv SPIKA NG 160 A1F ice cube machine 115V under-counter full dice

Product Description

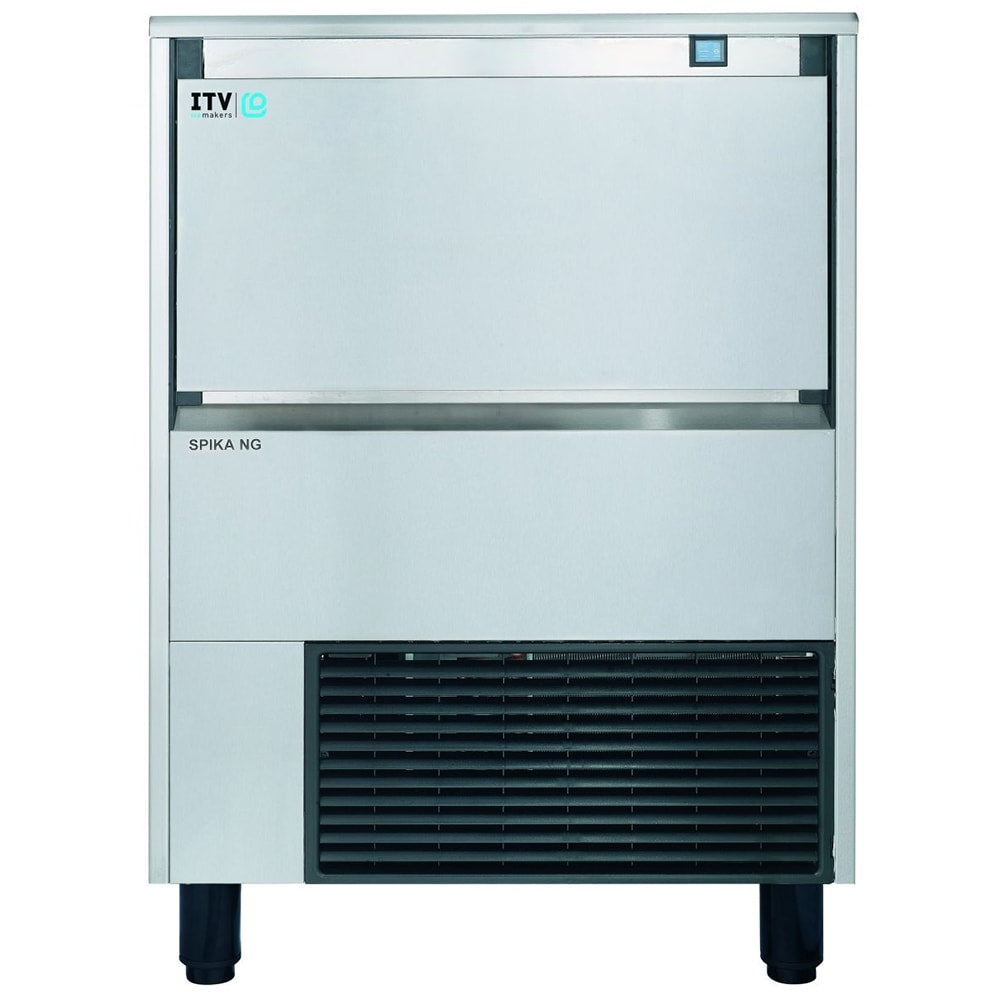

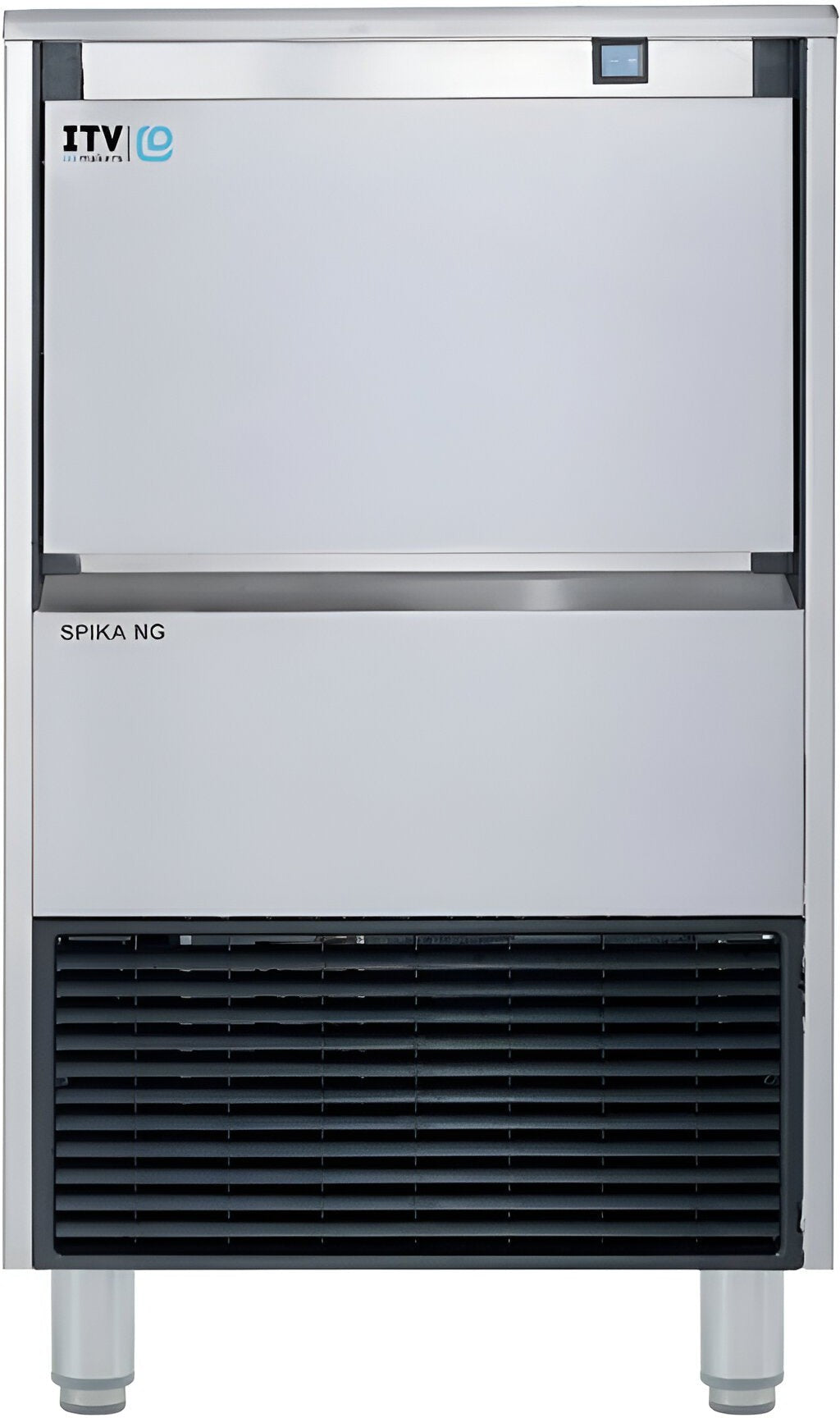

The ITV SPIKA NG 160 A1F is an under-counter ice cube machine designed for commercial use, operating on 115V/60Hz/1 power. It features dual switch operation for easy control, including an Ice/Clean cycle, and a seal-less pump located outside the ice zone for optimal performance and maintenance. Constructed with a robust Inox frame and 304 stainless steel supports, it allows for easy servicing. Front ventilation facilitates embedded installation, and an insulated storage bin maintains ice integrity.

• Dual switch operation with external on/off control and Ice/Clean cycle for convenient use.
• Seal-less pump positioned outside the ice zone ensures optimal performance and simplified maintenance.
• Robust Inox frame with 304 stainless steel supports allows for easy servicing without full disassembly.

Product Highlights

Efficient under-counter ice cube machine with durable 304 stainless steel construction, dual switch operation, and an insulated storage bin for commercial use.

Product Information

Standard Information

• Brand: ITV
• Manufacturer Part Number: SPIKA NG 160 A1F

Technical Specifications

• Width: 21.07 in
• Depth: 23.43 in
• Height: 31.07 in
• Ice Cube Dimensions: 1x1 in / 2.5 x 2.5 cm
• Ice Cube Style: Full
• Daily Production (70°F-50°F): 152 lb
• Daily Production (90°F-70°F): 128 lb
• Storage Capacity: 44 lb
• Input Voltage: 115V
• Frequency: 60 Hz
• Phase: 1
• Certifications: NSF Certified, ETL Certified, Energy Star Certified
• Compressor Type: Air Cooled
• Design: Standard Height
• Drain Type: Gravity
• Front Style: Lift Door
• NEMA Plug Type: 5-15P
• Refrigerant: R290 (Hydrocarbon)
• Water Inlet: 0.38 in
• Pressure: 14.5 psi (1 bar)/87 psi (6 bar)
• Timer: Electro mechanic
• Condenser Type: Self-contained
• Evaporator Type: Vertical plate
• Construction Material: 304 stainless steel
• Frame: Strong inox, solid machine structure in 4 columns
• Legs: Stainless steel, adjustable from 4 to 6 inches high
• Switch Type: LED on/off with PCB mounted at bottom, Cleaning switch
• Controls: Electronic
• Included Accessories: Scoop
• Ambient Temperature Range: 41 to 109 degrees F
• Water Temperature Range: 41 to 95 degrees F
