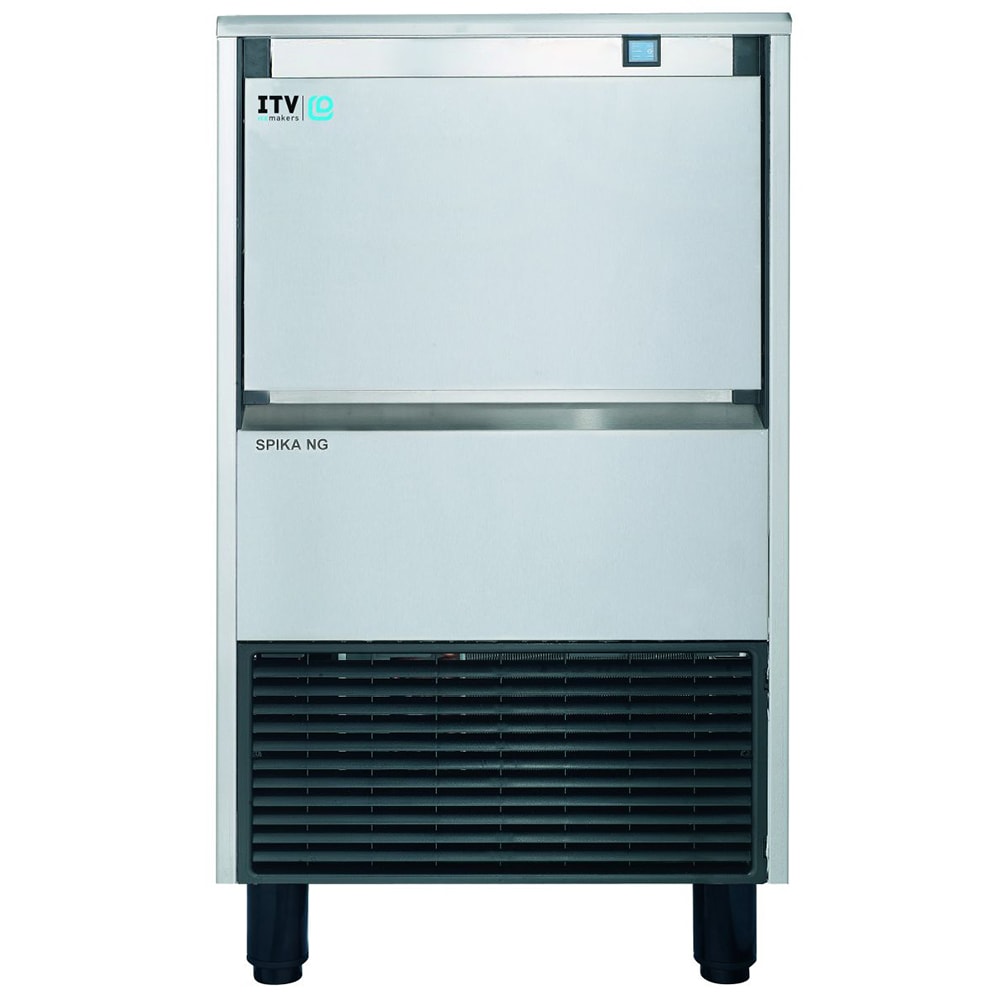

Itv SPIKA NG 130 A1H half cube undercounter ice machine 21 inchesW 134 lbs/day

Product Description

The ITV SPIKA NG 130 A1H is an air-cooled half cube undercounter ice machine designed for commercial use, producing 134 pounds of ice per day. Ideal for restaurants and drive-thrus, this unit features durable 304 stainless steel construction and a self-contained condenser for easy installation. Its electronic controls adapt to extreme climates, ensuring consistent performance. The machine also includes a cleaning switch for maintenance without cooling.

• Produces 134 pounds of half Classic American style ice cubes every 24 hours.
• Features 304 stainless steel construction and adjustable legs from 4 to 6 inches high.
• Equipped with electronic controls and a cleaning switch for efficient operation and maintenance.

Product Highlights

This ITV SPIKA NG 130 A1H ice maker offers 134 lbs/day production, 44.1 lbs storage, R290 refrigerant, and ENERGY STAR certification.

Product Information

Standard Information

• Brand: ITV
• Manufacturer Part Number: SPIKA NG 130 A1H

Technical Specifications

• Manufacturer: ITV Ice Makers
• Daily Production Capacity: 134 lbs
• Ice Storage Capacity: 44.1 lbs
• Compressor Type: Air Cooled
• Drain Type: Gravity
• Front Style: Lift Door
• NEMA Plug Type: 5-15P
• Ice Type: Half Cube
• Refrigerant Type: R290 (Hydrocarbon)
• Series: Spika
• Suggested Use: Commercial
• Voltage: 115V
• Frequency: 60Hz
• Phase: 1
• Water Inlet Connection: 0.38 in
• Cube Cycle: 150
• Water Consumption: 3.40 gal./hr. - 12.90 l./hr.
• Energy Consumption per 100 lbs: 8.37 kWh
• Amperage: 6.0 Amps
• Ice Cube Size: 0.9 in. W x 0.43 in. D x 1.02 in. H
• Timer Type: Electro mechanic
• Condenser Type: Self-contained
• Evaporator Type: Vertical plate
• Ambient Temperature Range: 41 to 109 degrees F
• Water Temperature Range: 41 to 95 degrees F
• Water Pressure: Min. 10 psi (0.7 bar)/Max. 85 psi (6.0 bar)
• Certifications: cETLus, NSF, ENERGY STAR
