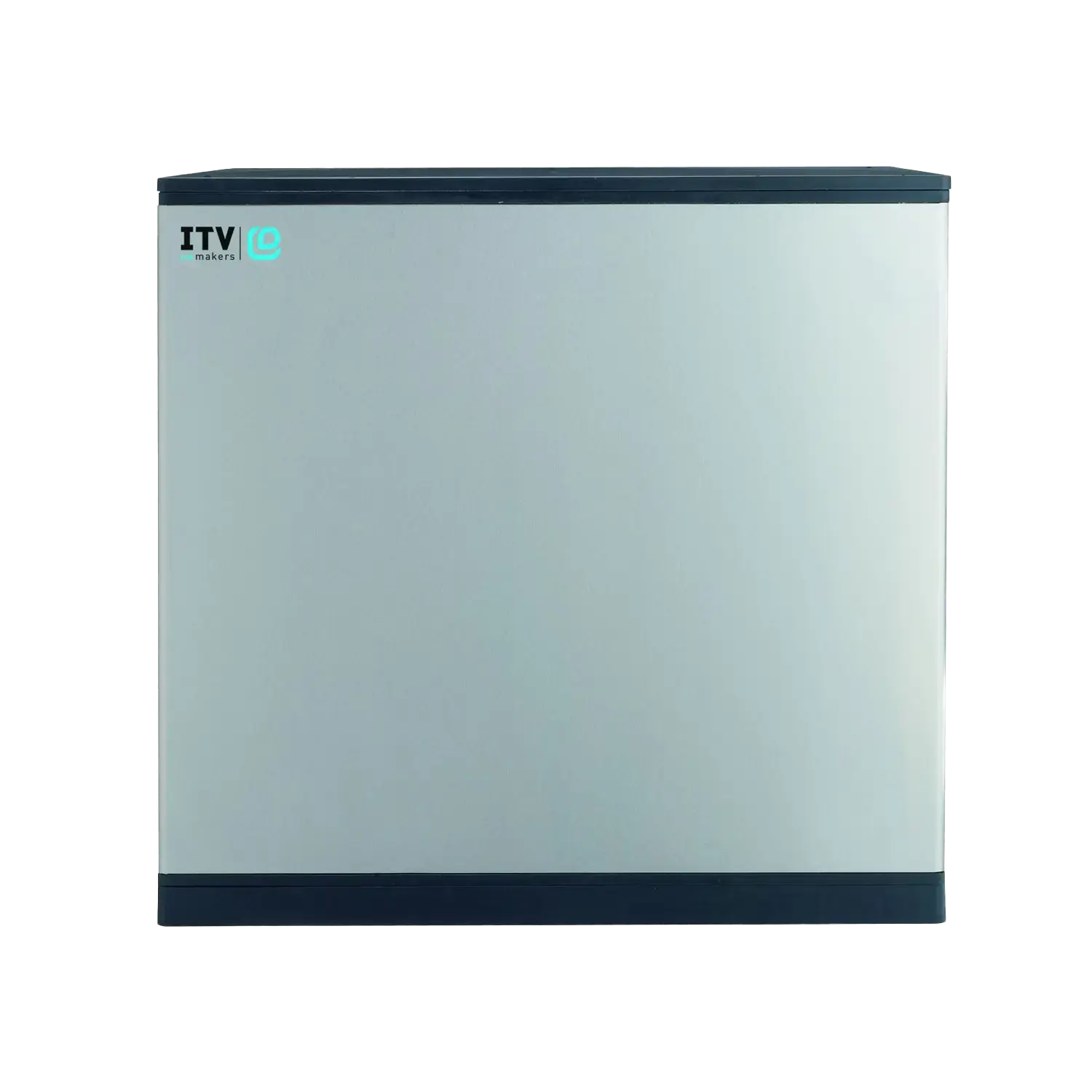

Itv spika ms 1000 a2fr ice maker, remote 208-230v 30 inch 1041 lb/day

Product Description

The ITV SPIKA MS 1000 A2FR is a modular ice cube machine designed for high-demand commercial kitchens. It produces both full dice and half dice ice cubes, ensuring versatility for various beverage and culinary needs. Featuring a high-efficiency evaporator, it maximizes ice production while minimizing energy consumption. The smart water distributor enhances drop-off efficiency, ensuring consistent ice quality. Constructed with a high-resistance AISI 304 stainless steel frame, it offers durability and a professional appearance.

• Produces both full dice and half dice ice cubes for diverse applications.
• High-efficiency evaporator maximizes ice production while minimizing energy consumption.
• Smart water distributor enhances drop-off efficiency for consistent ice quality.

Product Highlights

Modular design with electronic control, built for commercial use with easy maintenance.

Product Information

Standard Information

• Brand: ITV
• Manufacturer Part Number: SPIKA MS 1000 A2FR

Technical Specifications

• Material: AISI 304 Stainless Steel
• Ice Type: Full-dice cube, ~1" x 0.9" x 1" (26 x 23 x 26 mm)
• Control Type: Electronic
• Product Type: Ice Maker
• Design: Modular
• Machine Type: Modular head with remote air condenser (requires RC10 condenser + separate storage bin); stackable 2-high on larger bins
• Condenser/Cooling: Air-cooled, remote condenser (RC10, sold separately)
• Ice Production (Nominal): 1041 lb (472 kg) / 24 h
• Ice Production (ASHRAE): 1006 lb (456 kg) / 24 h
• Production Range: 728-1076 lb (330-488 kg) / 24 h
• Cubes per Cycle: 400
• Refrigerant: R404A
• Electrical: 208-230V / 60Hz / 1-Phase
• Power Consumption (Head + Condenser): 1912 W (Head) + 206 W (RC10 Condenser)
• ASHRAE Cooling Capacity: 23892 BTU/h (7002 W)
• Heat Rejected: 13294 BTU/h (3896 W)
• Energy Use: 4.46 kWh / 100 lb of ice
• Water Consumption (Ice-Making): 14.8 gal (55.9 L) / 100 lb of ice
• Wiring/Fuse (Head): 14 AWG (2.5 mm²), 3-conductor / 20 A fuse
• Wiring/Fuse (RC10 Condenser): 14 AWG (1.5 mm²), 3-conductor / 10 A fuse
• Operating Pressure: 14.5-87 psi (1-6 bar)
• Ambient Temperature Range: 41-109°F (5-43°C)
• Water Temperature Range: 41-95°F (5-35°C)
• RC10 Condenser Dimensions (W x D x H): 29.37" x 16.81" x 22.29" (746 x 427 x 566 mm)
• RC10 Weight (Net/Shipping): 88 lb (40 kg) / 110 lb (50 kg)
• Certifications: NSF, ETL (Intertek)
