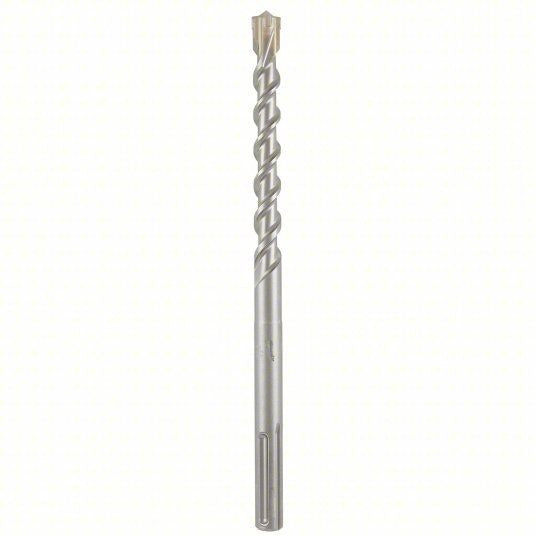

Itm smte1301 Sds-max Drill Bit 1x13 Inch Carbide X-cutter

Product Description

The ITM smte1301 is a heavy-duty SDS-Max rotary hammer drill bit designed for demanding drilling in concrete, reinforced concrete, and stone. The precision-ground carbide X-tip geometry delivers fast penetration, reduced vibration, and extended service life compared to standard two-cutter designs. At 1 inch in diameter and 13 inches in overall length, this bit is sized for deep-hole applications common in commercial and residential construction. A dual-flute design channels dust and debris out of the hole continuously, reducing heat buildup and maintaining consistent drilling speed throughout the bore. Licensed contractors and trade professionals handling heavy anchor installation, conduit penetrations, or pipe rough-ins will find this bit suited to production-pace work.

This drill bit is intended for use with SDS-Max rotary hammer drills. It is well suited for concrete slab penetrations, masonry wall cores, and reinforced concrete anchor holes encountered in electrical, plumbing, and mechanical installation work. The 1-inch bore diameter accommodates common conduit sleeves, anchor systems, and through-bolt applications. Both residential and light commercial construction trades use this size and shank type routinely for structural and utility rough-in work.

Key Features

• Precision-ground carbide X-tip for fast penetration and extended tool life in concrete and masonry
• SDS-Max shank provides maximum impact energy transfer from compatible rotary hammers
• Dual-flute design evacuates dust and debris continuously to reduce heat buildup
• 1-inch diameter x 13-inch length suits deep anchor and conduit penetration work
• Engineered for reinforced concrete, standard concrete, and stone substrates

Compatibility

Designed for use with SDS-Max rotary hammer drills. The SDS-Max shank is an industry-standard interface used across professional-grade rotary hammer platforms.

Installation Notes

Installation should be performed by qualified contractors familiar with rotary hammer operation and applicable site safety requirements. Confirm the drill accepts SDS-Max tooling before inserting the bit, and ensure the bit is fully seated and locked in the chuck before applying power. Wear appropriate PPE including eye protection and hearing protection during operation. Follow OSHA and local jobsite safety guidelines when drilling overhead or near existing utilities.

Technical Specifications

• Shank Type: SDS-Max
• Tip Type: Carbide X-Cutter (X-tip)
• Diameter: 1 inch
• Overall Length: 13 inches
• Flute Design: Dual flute
• Application: Concrete, reinforced concrete, stone, masonry

Standard Information

• Brand: ITM
• Manufacturer Part Number: smte1301
