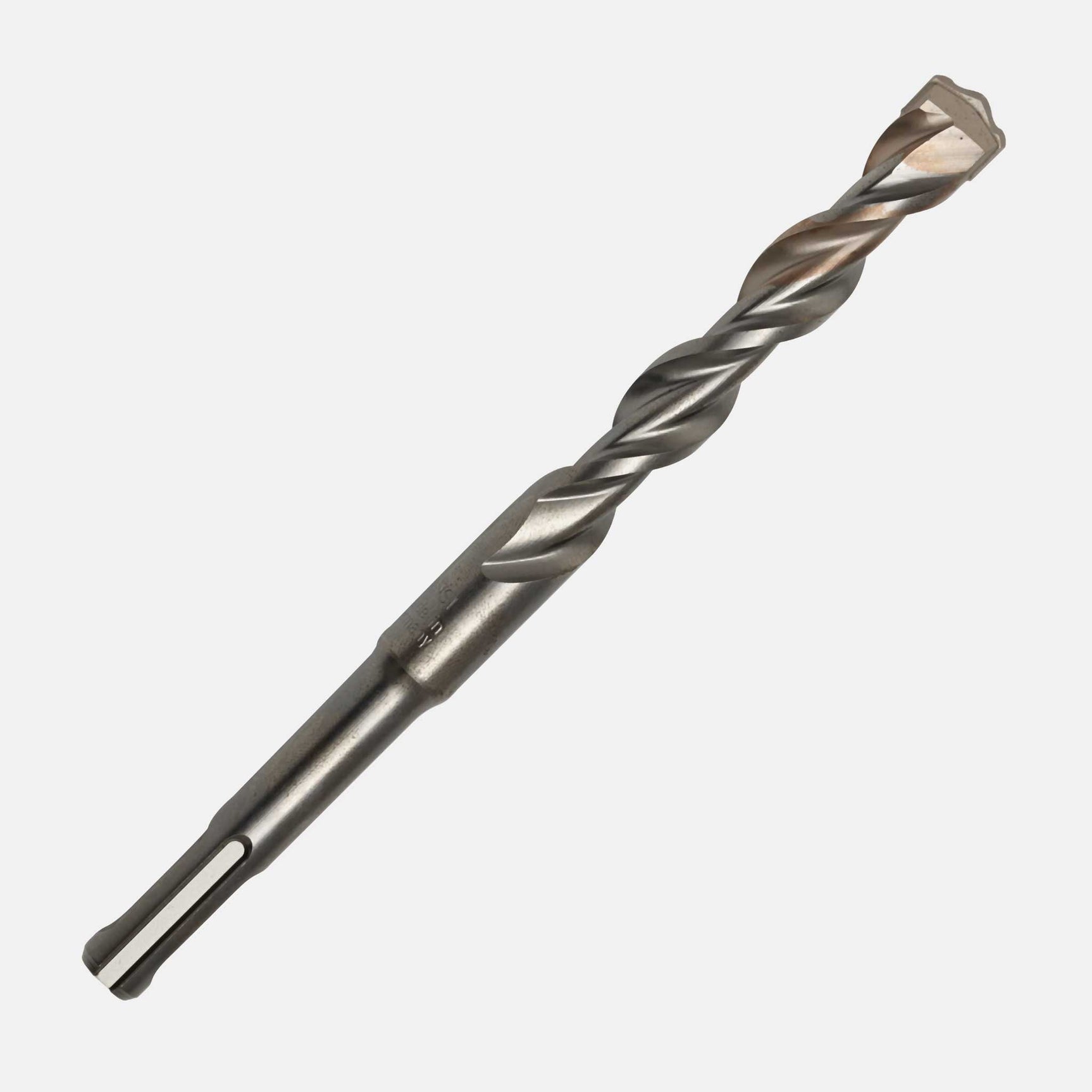

Itm 715S62464 SDS Drill Bit (3/8 in x 4 in x 6-1/4 in)

Product Description

The Itm 715S62464 is an SDS masonry drill bit with a 3/8 in diameter, a 4 in flute length and a 6-1/4 in overall length. It is designed for use with SDS rotary percussion drills to bore through concrete, block, brick and natural stone. The bit uses a tungsten carbide tip with copper and silver brazing and optimized head geometry; it meets ANSI specifications and is made in Germany.

• Shank type: SDS for use with SDS rotary percussion drills
• Dimensions: 3/8 in diameter; 4 in flute length; 6-1/4 in overall length
• Tungsten carbide tip brazed with copper and silver; optimized head geometry and self-centering chisel point; meets ANSI

Product Highlights

3/8 in SDS masonry bit — 4 in flute, 6-1/4 in overall; tungsten carbide tip; made in Germany; ANSI compliant

Product Information

Standard Information

• Brand: ITM
• Manufacturer Part Number: 715S62464
• Country of Origin: Germany

Technical Specifications

• Brand: ITM
• Manufacturer Part Number: 715S62464
• Type: SDS masonry drill bit
• Diameter: 3/8 in
• Flute Length: 4 in
• Overall Length: 6-1/4 in
• Shank Type: SDS
• Tip Material: Tungsten carbide
• Tip Brazing: Copper and silver brazed
• Optimized Head Geometry: Yes (self-centering chisel point)
• Meets Standards: ANSI
• Intended Use: Concrete, masonry, block, brick, natural stone
• Country of Origin: Made in Germany
• UPC: 703652464267
• SKU / MPN: 715S62464
