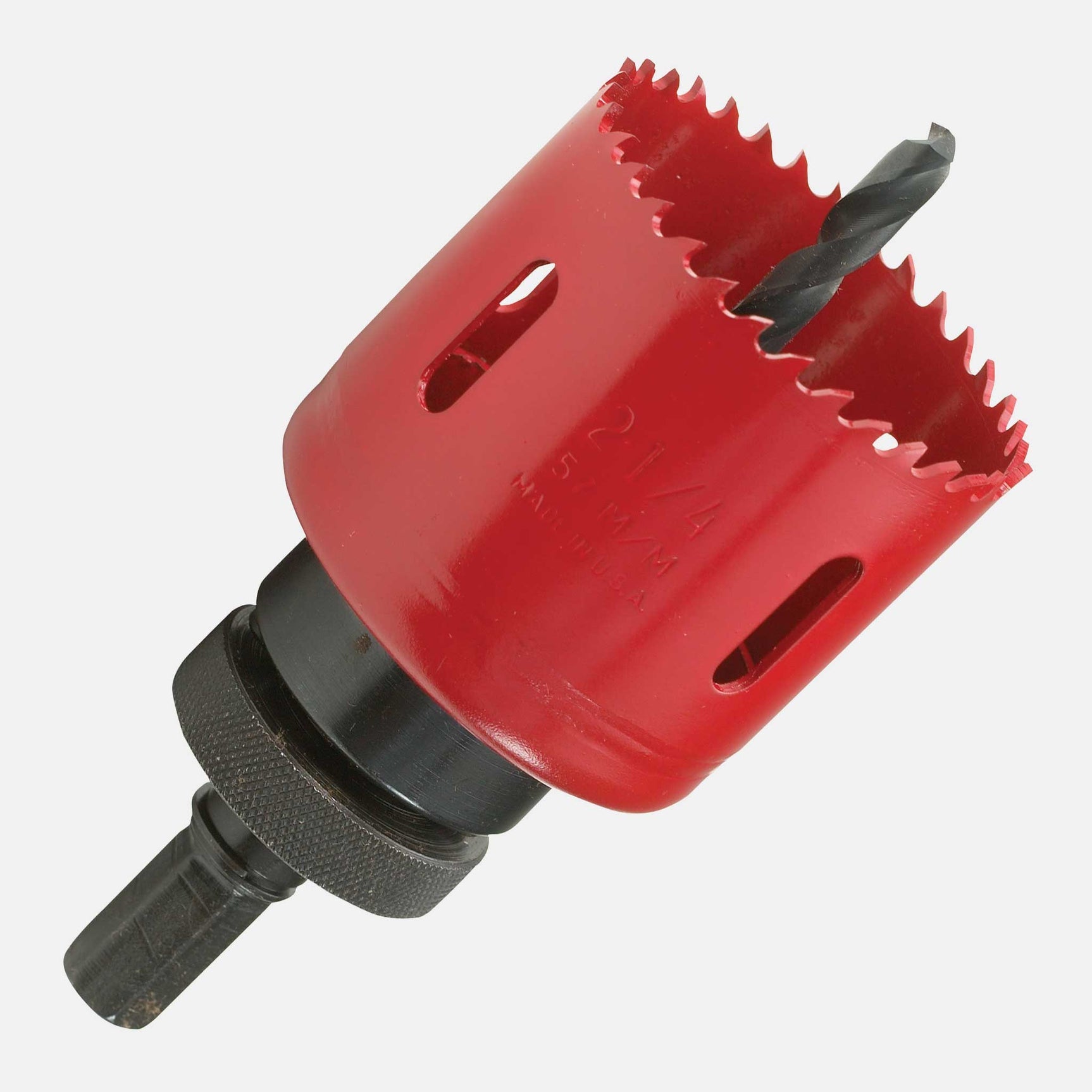

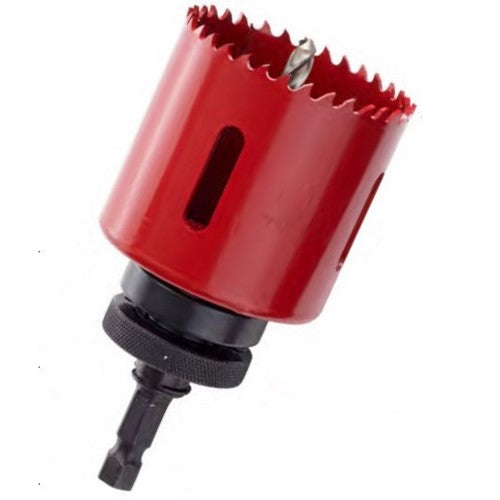

Itm 275HW0138 3-1/4 inches bi-metal hole saw (1 pack)

Product Description

Itm 275HW0138 is a 3-1/4" bi-metal hole saw with an electron beam-welded M3 cutting edge bonded to an alloy steel back. It offers a 1-15/16" cutting depth, 5-variable pitch and Rockwell hardness Rc 63-65 for cutting steel, wood (including nails), plastics, mild stainless, sheet metal and copper. The saw includes knock-out holes for core removal and is made in the United States.

• Diameter: 3-1/4" (82.6 mm) with 1-15/16" cutting depth
• Bi-metal construction with M3 cutting edge; electron beam-welded to alloy steel back; 5-variable pitch, Rc 63-65
• Suitable for steel, wood (including nails), plastics, mild stainless, sheet metal and copper; includes knock-out holes for core removal

Product Highlights

3-1/4" bi-metal hole saw; electron beam-welded M3 edge; 1-15/16" cutting depth; made in USA

Product Information

Standard Information

• Brand: ITM
• Manufacturer Part Number: 275HW0138
• Country of Origin: USA

Technical Specifications

• Brand: Itm
• MPN: 275HW0138
• Type: Hole saw
• Diameter: 3-1/4" (3.25 in / 82.6 mm)
• Cutting Depth: 1-15/16" (1.9375 in / 49.2 mm)
• Material: Bi-metal (with 8% cobalt)
• Cutting Edge: M3 cutting edge
• Edge Bonding: Electron beam-welded cutting edge to alloy steel back
• Pitch: 5-variable pitch
• Rockwell Hardness: Rc 63-65
• Rake: Positive rake
• Applications: Steel, wood (including nails), plastics, mild stainless, sheet metal, copper; cuts through 2" x 4" lumber
• Arbor Compatibility: ARB-3, ARB-4 or ARB-5; requires arbor/mandrel or chuck
• Country of Origin: Made in USA
• Package Quantity: 1
• Condition: Brand New
• UPC: 703652971383
