Itm 275HW0134 Bi-Metal Hole Saw (2-5/8 inches)

Product Description

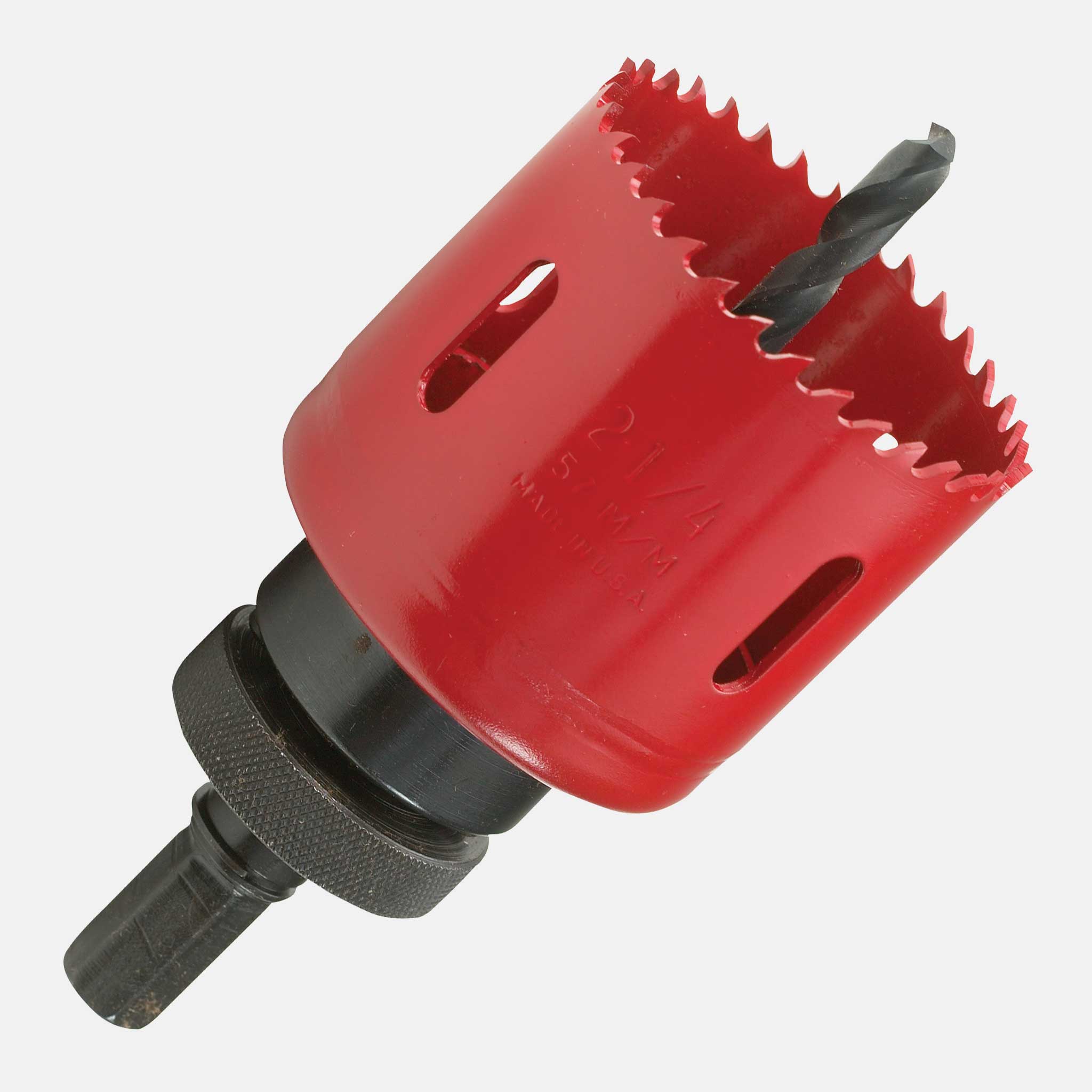

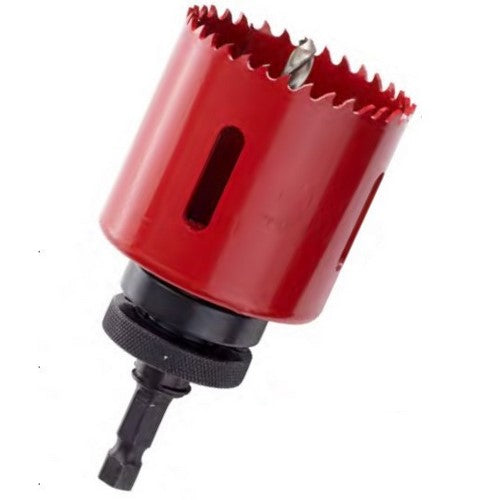

Itm 275HW0134 is a 2-5/8" bi-metal hole saw with an M3 cutting edge electron-beam welded to a tough alloy steel back. It features a 5-variable-pitch tooth design (Rc 63-65) and positive rake for efficient cutting through steel, wood (including through nails), plastics, mild stainless, sheet metal and copper. The saw provides a 1-15/16" cutting depth and includes knock-out holes for core removal; compatible with ARB-3, ARB-4 or ARB-5 arbors.

• Bi-metal construction with M3 cutting edge electron-beam welded to alloy steel back
• 5-variable-pitch teeth, Rc 63-65 hardness and positive rake for efficient cutting
• 1-15/16" cutting depth, knock-out holes for core removal; compatible with ARB-3, ARB-4 or ARB-5 arbors

Product Highlights

2-5/8" diameter bi-metal hole saw with M3 cutting edge, 1-15/16" depth, electron-beam welded construction; made in USA

Product Information

Standard Information

• Brand: ITM
• Manufacturer Part Number: 275HW0134
• Country of Origin: USA

Technical Specifications

• Brand: Itm
• MPN: 275HW0134
• Type: Hole saw
• Diameter: 2-5/8" (2.625 in / 66.7 mm)
• Construction: Bi-metal
• Cutting Edge: M3
• Welding: Electron beam welded cutting edge to alloy steel back
• Pitch: 5-variable pitch
• Hardness: Rc 63-65
• Rake: Positive
• Cutting Depth: 1-15/16" (1.9375 in)
• Arbor Compatibility: ARB-3, ARB-4 or ARB-5
• Cutting Materials: Steel; wood (including through nails); plastics; mild stainless; sheet metal; copper; 2x4 lumber
• Core Removal: Knock-out holes
• Finish: Red finish
• Country of Origin: Made in USA
• Condition: Brand New
