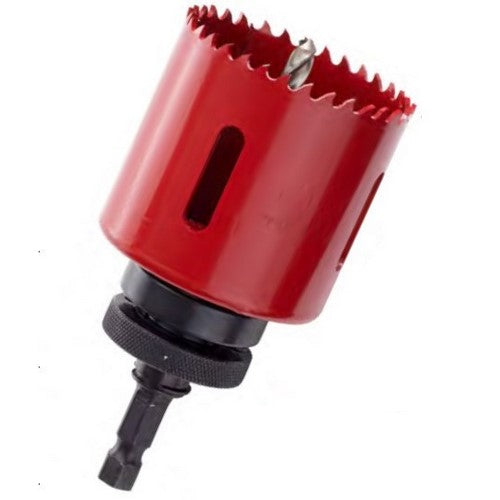

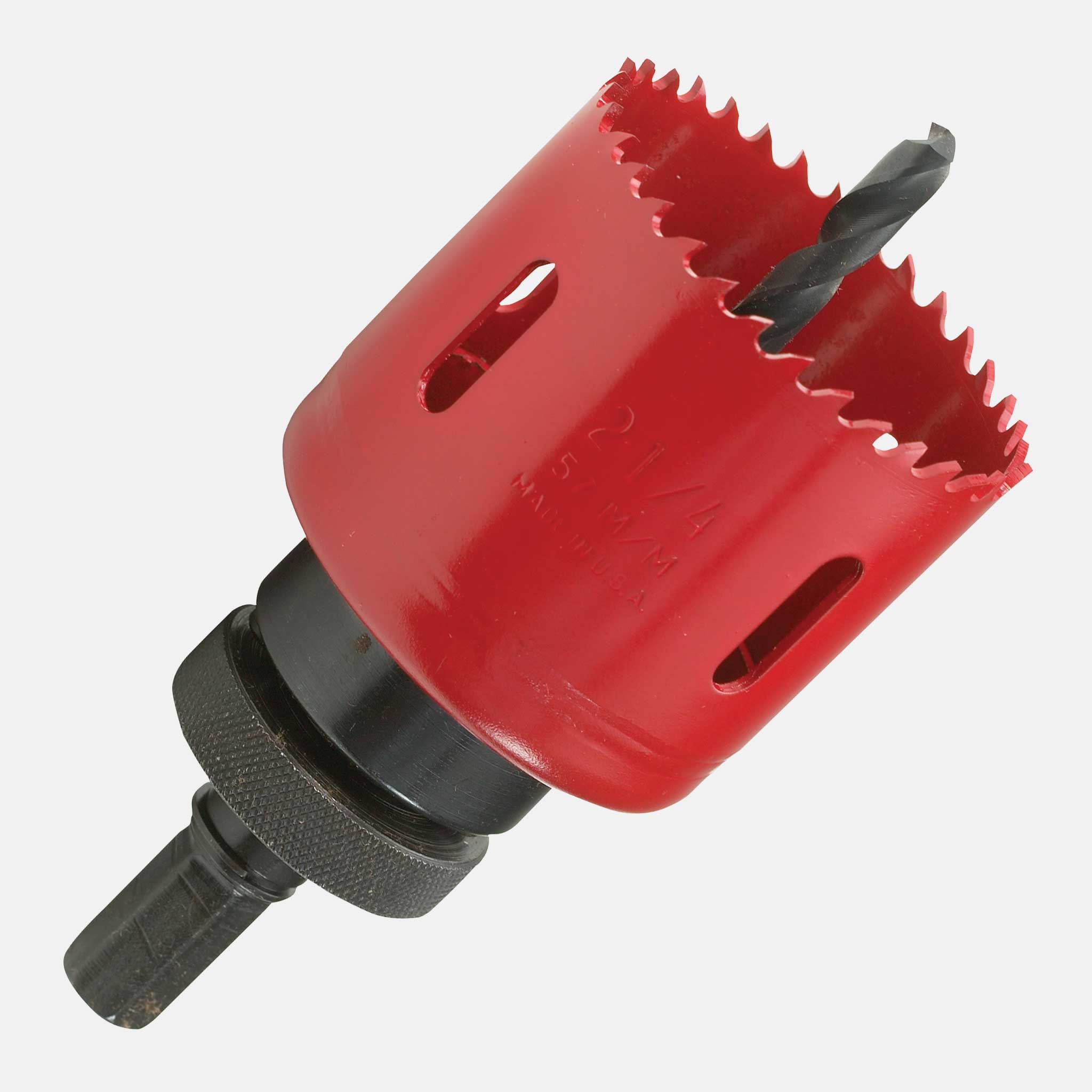

Itm 275HW0025 Bi-Metal Hole Saw 1-5/8 inches (41.2 mm)

Product Description

Itm 275HW0025 is a 1-5/8" bi-metal hole saw designed for cutting through materials such as steel, wood with nails, plastics, mild stainless, sheet metal, and copper. The saw features an M3 cutting edge electron beam welded to an alloy steel back, a 5-variable-pitch tooth form with Rockwell hardness Rc 63-65, and a cutting depth of 1-15/16". Includes knockout holes for core removal and fits ARB-3, ARB-4, or ARB-5 arbors.

• Bi-metal construction with M3 cutting edge electron beam welded to alloy steel back
• Five variable pitch teeth, Rockwell hardness Rc 63-65, positive rake
• 1-15/16" cutting depth; cuts through 2" x 4"; compatible with ARB-3, ARB-4, ARB-5 arbors

Product Highlights

1-5/8" diameter bi-metal hole saw; M3 cutting edge; knockout holes for core removal

Product Information

Standard Information

• Brand: ITM
• Manufacturer Part Number: 275HW0025
• Country of Origin: USA

Technical Specifications

• Brand: ITM
• Manufacturer Part Number: 275HW0025
• Diameter: 1-5/8" (1.625 in / 41.2 mm)
• Diameter (mm): 41.2 mm
• Construction: Bi-metal
• Cutting Edge: M3 cutting edge
• Weld Type: Electron beam welded to alloy steel back
• Variable Pitch / Hardness: 5 variable pitch, Rockwell hardness Rc 63-65
• Rake: Positive rake
• Cutting Depth: 1-15/16" (1.9375 in)
• Material Capability: Steel; wood with nails; plastics; mild stainless; sheet metal; copper; cuts through 2" x 4"
• Arbor Compatibility: ARB-3, ARB-4, ARB-5
• Country of Origin: Made in USA
• Type: Hole saw
• Condition: Brand New
