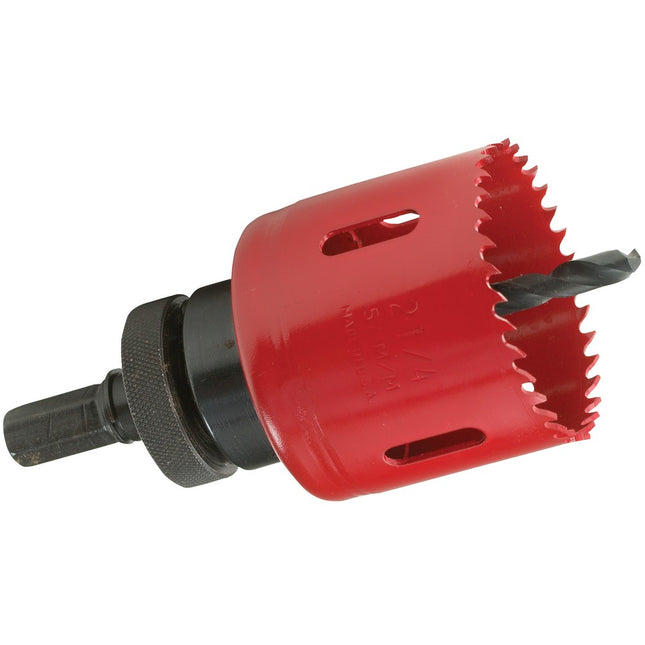

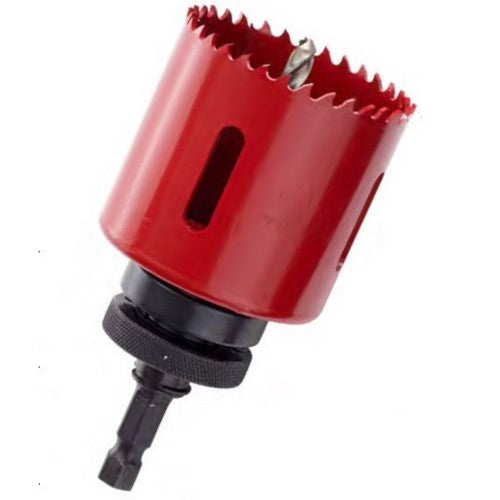

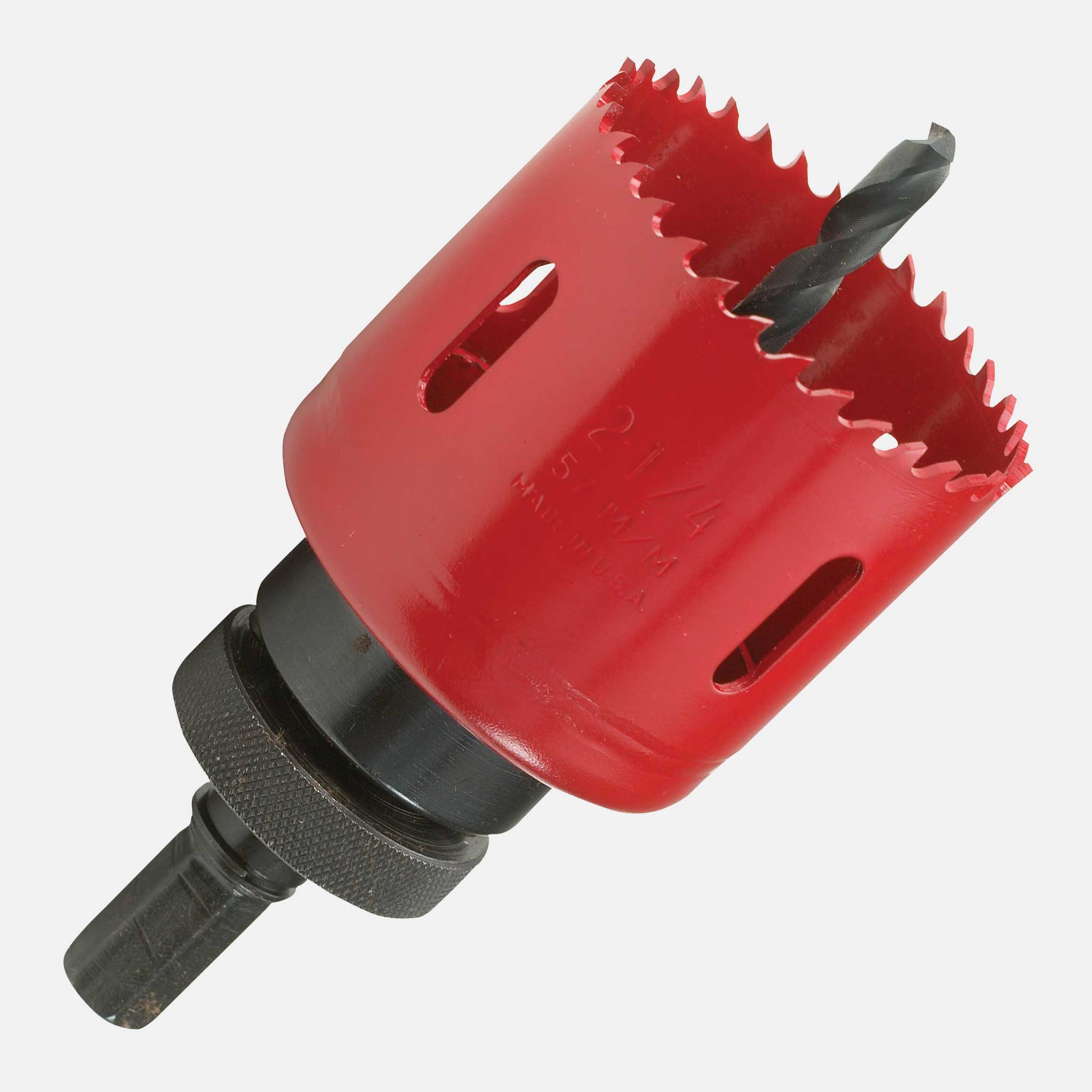

Itm 275HW0018 Variable Pitch Hole Saw 1 in Dia (1-15/16 in Cutting)

Product Description

The ITM 275HW0018 is a bi-metal variable pitch hole saw with a 1 in diameter and 1-15/16 in cutting depth designed for use with ARB-0, ARB-1, or ARB-2 arbors (1/2-20 thread). It features an M3 cutting edge, electron-beam welded construction and knockout holes for core removal. The saw is specified for cutting steel, stainless, brass, aluminum, wood with nails, plastics and sheet materials and includes material-specific speed ratings.

• Bi-metal variable pitch construction with M3 cutting edge and electron-beam welding
• 1 in diameter with 1-15/16 in cutting depth and knockout holes for core removal
• Compatible with ARB-0, ARB-1, ARB-2 arbors (1/2-20 thread); material-specific speed ratings provided

Product Highlights

1 in bi-metal variable pitch hole saw; 1-15/16 in cutting depth; compatible with ARB-0/1/2 arbors (1/2-20 thread); suitable for metal, wood with nails, plastics and sheet materials.

Product Information

Standard Information

• Brand: ITM
• Manufacturer Part Number: 275HW0018
• Country of Origin: USA

Technical Specifications

• Manufacturer Part Number: 275HW0018
• Brand: ITM
• Product Type: Hole Saw
• Diameter: 1 in (25.4 mm)
• Cutting Depth: 1-15/16 in (1.9375 in)
• Construction: Bi-metal
• Cutting Edge: M3 cutting edge
• Variable Pitch: Variable pitch (manufacturer lists 5 variable pitch) — Rc 63-65 noted for cutting edge
• Rake: Positive rake
• Compatible Arbors: ARB-0, ARB-1, ARB-2
• Arbor Thread: 1/2-20 thread
• Compatible Materials: Light gauge stainless steel, machinable metal, nail-embedded wood, plastic, plywood, wood, brass, aluminum, sheet metal, mild stainless
• Speed Rating: 350 rpm mild steel; 235 rpm cast iron; 175 rpm tool steel/stainless; 470 rpm brass; 525 rpm aluminum
• Knockout Holes: Yes (for easy core removal)
• Manufacturing Method: Electron beam welding
• Arbor Included: No (arbor sold separately)
• Country of Origin: Made in USA
• Weight: 0.14 lbs
• Dimensions: 1 in (diameter) x 1.9375 in (cutting depth)
