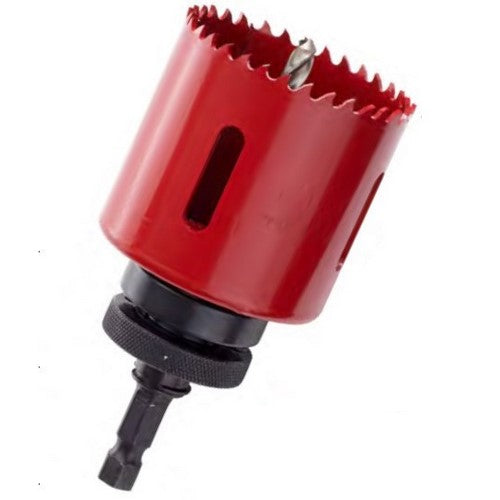

Itm 275HW0017 Bi-Metal Hole Saw (15/16\")

Product Description

Itm 275HW0017 is a 15/16" bi-metal hole saw with an electron beam welded M3 cutting edge and an alloy steel back. It provides a 5-variable-pitch design (Rc 63-65) and positive rake for smooth cutting and a 1-15/16" cutting depth. The saw cuts wood including nails, steel, mild stainless, sheet metal, copper and plastics, and includes knock-out holes for core removal. Made in USA.

• Bi-metal construction with electron beam welded M3 cutting edge and alloy steel backing for durability.
• 5-variable-pitch (Rc 63-65) and positive rake for controlled cutting; 1-15/16" cutting depth.
• Designed to cut wood (including nails), steel, mild stainless, sheet metal, copper and plastics; includes knock-out holes.

Product Highlights

15/16" diameter; M3 electron beam welded cutting edge; 1-15/16" cutting depth; bi-metal construction; made in USA

Product Information

Standard Information

• Brand: ITM
• Manufacturer Part Number: 275HW0017
• Country of Origin: USA

Technical Specifications

• Brand: Itm
• Manufacturer Part Number: 275HW0017
• Diameter: 15/16" (0.9375 in / 23.8 mm)
• Construction: Bi-metal (M3 cutting edge electron beam welded to alloy steel back)
• Cutting Edge: M3
• Variable Pitch: 5-variable pitch (Rc 63-65)
• Rake: Positive rake
• Cutting Depth: 1-15/16" (1.9375 in)
• Applications: Wood (including nails), steel, mild stainless, sheet metal, copper, plastics
• Knockout Holes: Yes (for easy core removal)
• Arbor Compatibility: ARB-0, ARB-1 or ARB-2
• Country of Origin: Made in USA
• Finish: Red
