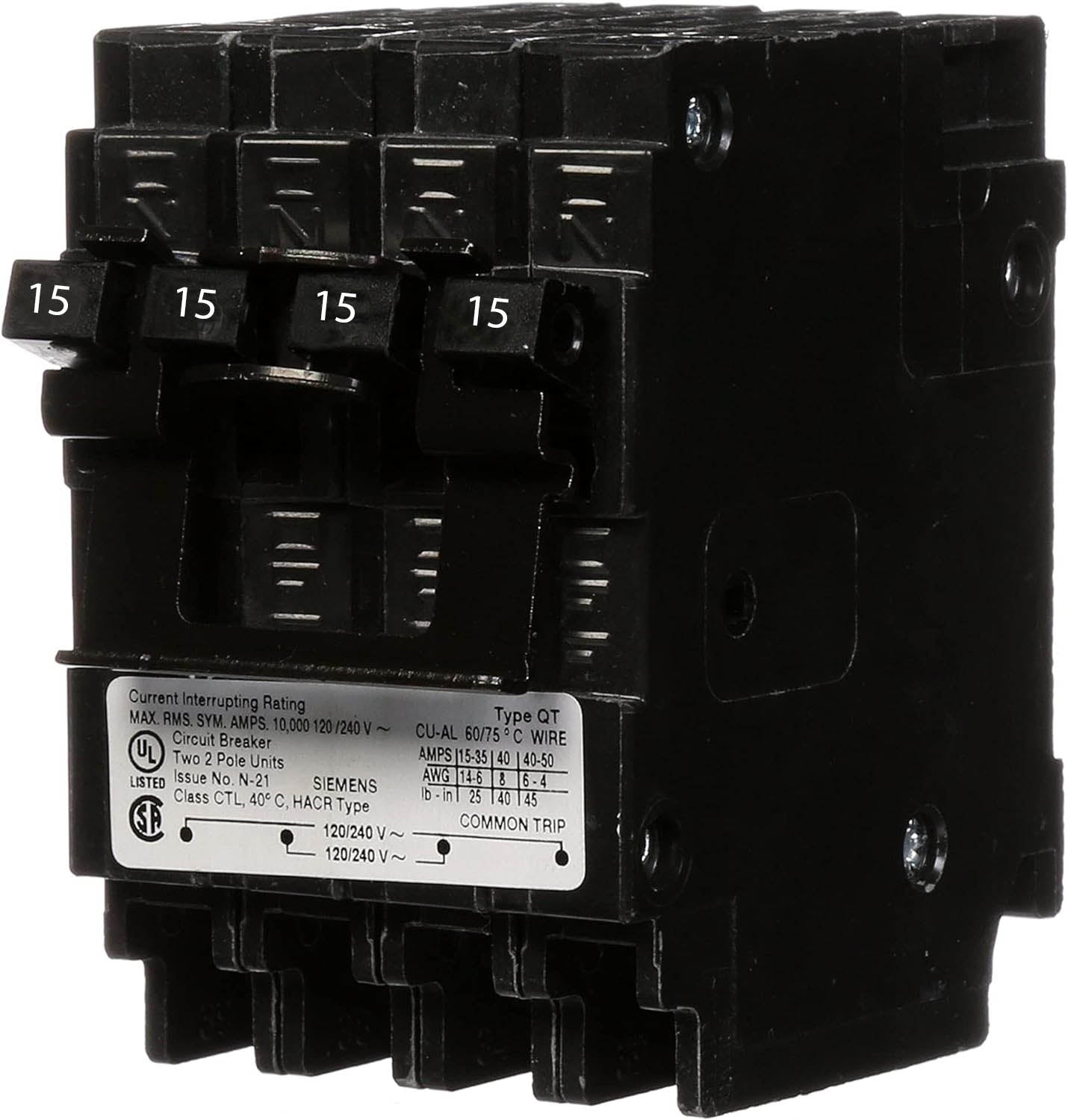

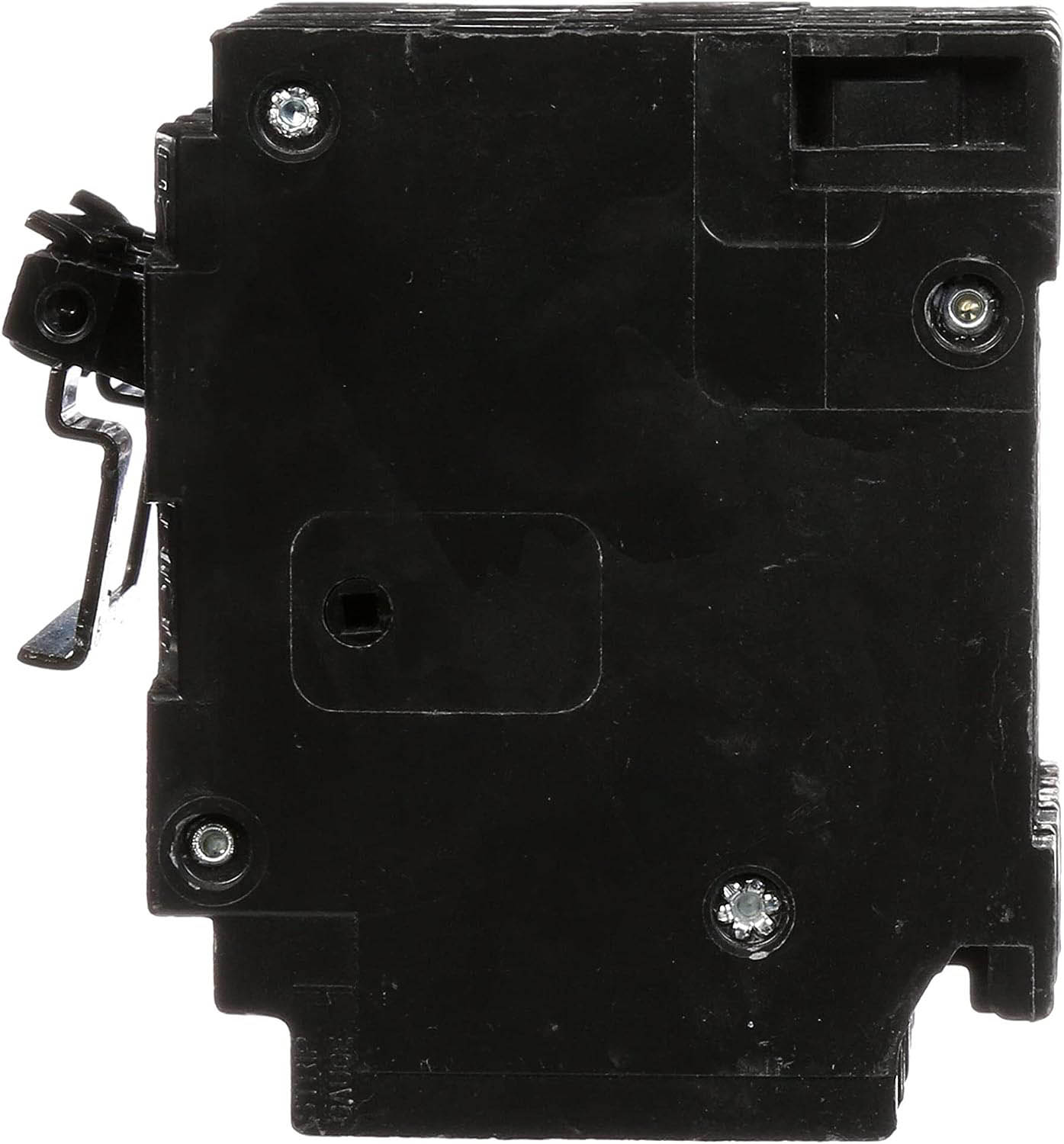

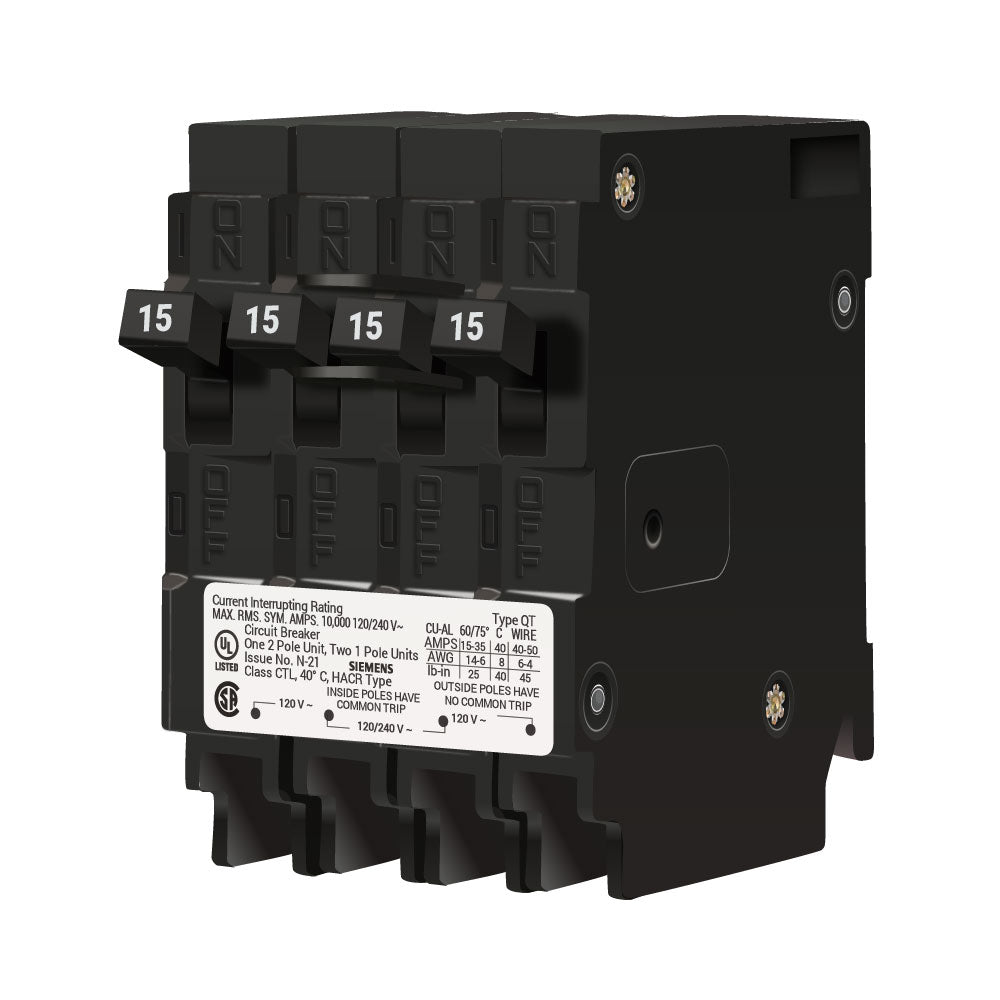

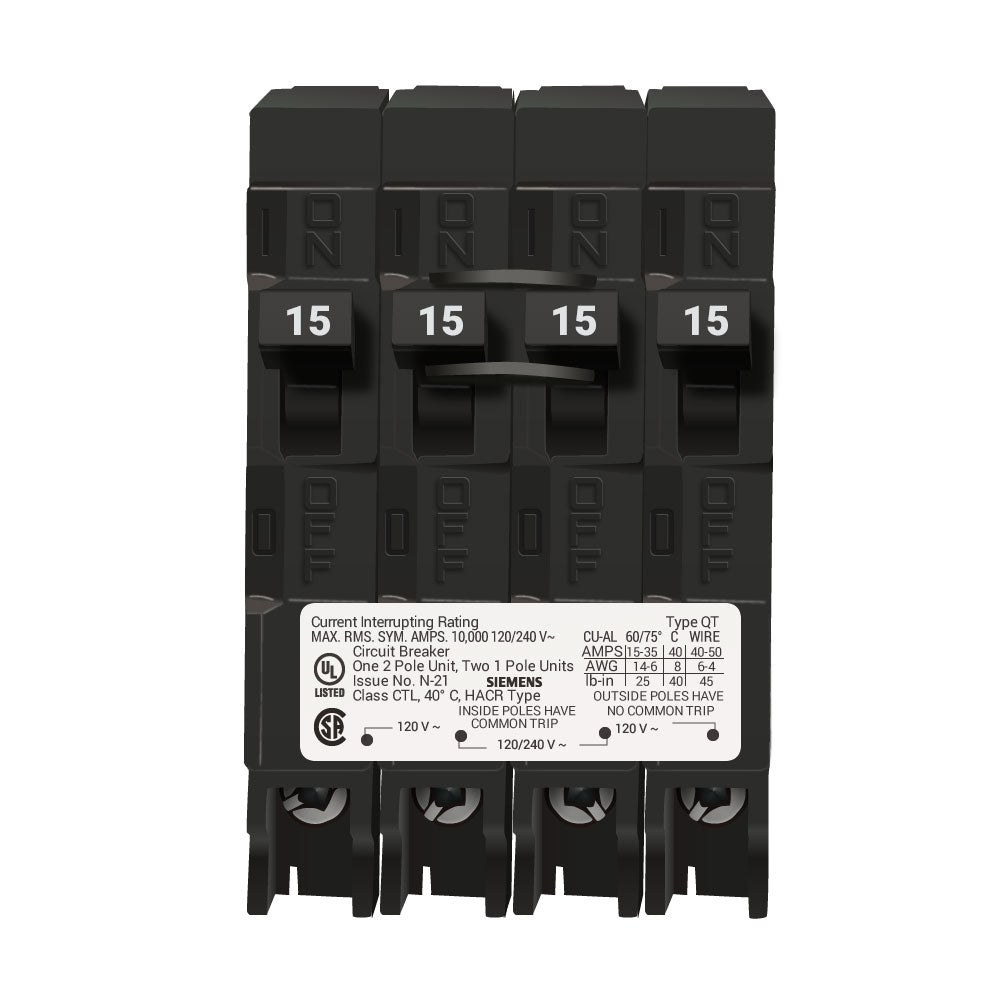

Ite Q21515CT quad circuit breaker 15 amp

Product Description

The ITE Q21515CT is a quad circuit breaker designed for use in Siemens EQ, Siemens Ultimate, ITE, and Gould load centers and meter combinations that are rated to accept type QT breakers. This plug-in type breaker provides overload and short circuit protection. It is rated for 120/240-Volt AC and calibrated for 40C maximum ambient applications.

• One 15-Amp double pole, two 15-Amp single pole
• Plug in type
• Space Saving

Product Highlights

This ITE quad circuit breaker is ideal when new circuits are required in a panel that has no available spaces.

Product Information

Standard Information

• Brand: ITE
• Manufacturer Part Number: Q21515CT

Technical Specifications

• Brand: SIEMENS
• Manufacturer: SIEMENS
• MPN: Q21515CT
• Current Rating: 15 Amps
• Amperage (A): 15 A
• Voltage: 240 Volts
• Voltage Rating: 240 Volt
• Phase: 1
• Poles: 2
• Connection: Plug-In
• Type: QT
• Family: Q Series
• Sub category: Quad
• Standard: UL 489
• Interrupt Rating: 10 AIC
• AIC Rating: 10kA@240V
• Trip Range: Thermal Magnetic
• Protection: Thermal Magnetic
• Functions: LI – Long-Time and Instantaneous
• Mounting Type: Plug-In Mount
• Number Of Poles: Two single poles and one double pole
• Item model number: Q21515CT
• Item Package Quantity: 1
