Isonas CABLE-ADAPTER Adapter Cable RC-03 to RC-04 (5 in)

Product Description

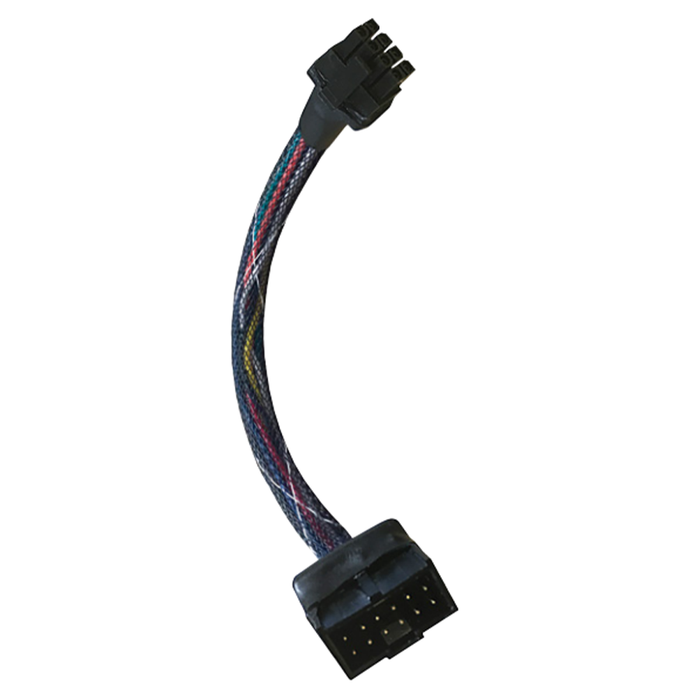

Isonas CABLE-ADAPTER is an adapter cable for Isonas Pure IP systems that converts an RC-03 12-pin pigtail to an RC-04 8-pin connection. The 5 inch cable features heat-shrink wrapped ends for added durability and is intended to enable upgrading an RC-03 reader-controller to RC-04 without replacing the existing pigtail. Connectors and wiring must be matched to RC-04 wiring guidelines.

• Converts RC-03 12-pin pigtail to RC-04 8-pin connection for Pure IP reader-controllers
• Cable length approximately 5 in with heat-shrink wrapped ends for protection
• Connectors: 1 x 12-pin male pigtail to 1 x 8-pin male pigtail; compatible with RC03 and RC04

Product Highlights

5 in 12-pin to 8-pin adapter cable for Isonas RC-03 to RC-04 upgrades with heat-shrink protected ends.

Product Information

Standard Information

• Brand: ISONAS
• Manufacturer Part Number: CABLE-ADAPTER
• Country of Origin: United States

Technical Specifications

• Brand: Isonas
• Manufacturer Part Number: CABLE-ADAPTER
• Model: CABLE-ADAPTER
• Product Line: Pure IP
• Function: 12-pin to 8-pin converter cable
• Product Type: Data Transfer Cable
• Cable Length: 5 in
• Dimensions: 5 in L x 0.75 in diameter
• Connector on First End: 1 x 12-pin male pigtail
• Connector on Second End: 1 x 8-pin male pigtail
• End Protection: Heat-shrink wrapped ends
• Compatibility: Isonas RC03, RC04 (card reader)
• Country of Origin: US
• UPC: 685867919940
• Product Group: Electronic Access Controls
• Commercial/Residential: Commercial
