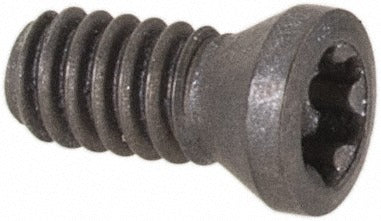

Iscar 7005380 Cap Screw M2.2 X 0.45 Torx Plus TP7

Product Description

The ISCAR 7005380 is a countersunk-head cap screw designed to secure indexable inserts in multifunction toolholders used in precision machining operations. Featuring a Torx Plus TP7 drive and M2.2 x 0.45 thread, this screw provides reliable clamping force with minimal fastener bulk. The overall length of 0.2047 inches (5.20 mm) suits the compact geometries typical of indexable insert toolholders. Installation requires an IP-7/5 key driver. Licensed machinists, toolroom technicians, and CNC setup personnel use this fastener when servicing or replacing indexable inserts in DR-MF style toolholders. It is sold individually but must be ordered in multiples of 10.

This cap screw is engineered for use with ISCAR DR-MF series multifunction toolholders and the corresponding XCMT-MF family of indexable inserts. It is a direct replacement or service fastener for machines running multifunction turning, milling, or drilling operations where the DR-MF toolholder platform is in use. Proper insert seating and torque application are critical in high-speed indexable tooling, making correct fastener selection essential for tool performance and operator safety.

Key Features

• Torx Plus TP7 drive for precise torque transfer and reduced cam-out risk
• M2.2 x 0.45 thread size matched to DR-MF toolholder insert pockets
• Countersunk head profile seats flush with the insert and toolholder face
• Compatible with IP-7/5 key driver for correct installation tooling
• Compact 5.20 mm overall length suited to small-format indexable toolholders
• Designed for use with XCMT-MF series indexable inserts

Compatibility

Compatible with the ISCAR DR-MF toolholder style and the following indexable inserts: XCMT 040104L-MF, XCMT 040104R-MF, XCMT 050204-MF, XCMT 060204-MF, and XCMT 070304-MF. Requires an IP-7/5 key driver for installation.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician familiar with indexable tooling systems. Power down and lock out any machine spindle before servicing toolholders or replacing inserts and fasteners. Use the specified IP-7/5 Torx Plus key driver to avoid fastener damage. Do not substitute a standard Torx driver, as Torx Plus geometry requires a matched driver to prevent drive recess damage.
