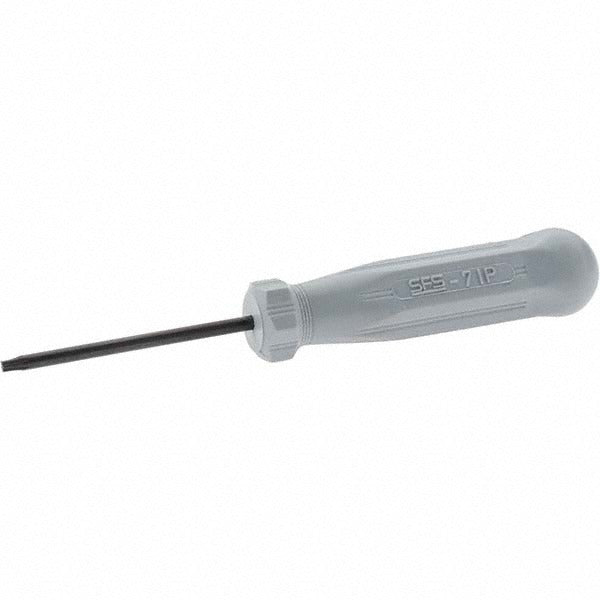

Iscar 7003436 TP7 Torx Plus Driver Indexable Face Mills

Product Description

The ISCAR 7003436 is a TP7 Torx Plus drive driver designed for indexable face mill toolholders. It seats and torques indexable insert screws securely, ensuring consistent clamp force across the cutting edge. Built for use in machining environments where precise insert seating directly affects surface finish and tool life, this driver is a service tool kept at the machine or in a toolroom. It is compatible with the SR 10502813-HGSM insert screw and fits the Helitang series of face mill bodies. The part weighs 0.033 pounds and fits a TP7 drive profile.

This driver is used with ISCAR Helitang series face mill toolholders in CNC milling operations, both production and job-shop environments. It is the correct drive tool for securing inserts in T490 ELN-08, T490 ELN-M-08, T490 FLN-08, and T490 LNM-08 style toolholders. Compatible inserts include T490 LNHT 080404PNR, T490 LNHT 080404PNR-RD, T490 LNHT 080408PNR, T490 LNHT 080412PNR, T490 LNHT 080416PNR, T490 LNMT 080408PNR, T490 LNMT 0804PNR, and T490 LNMT0804PNR-CS. Machinists and toolroom technicians use this driver during insert changes and setup.

Key Features

• TP7 Torx Plus drive profile for secure, cam-out-resistant insert screw engagement
• Designed specifically for ISCAR Helitang series face mill toolholders
• Compatible with SR 10502813-HGSM insert screw
• Lightweight at 0.033 pounds for easy handling at the machine
• Single-piece quantity packaging suitable for individual replacement

Compatibility

Compatible with T490 ELN-08, T490 ELN-M-08, T490 FLN-08, and T490 LNM-08 toolholder styles in the ISCAR Helitang series. Designed for use with insert screw SR 10502813-HGSM and inserts T490 LNHT 080404PNR, T490 LNHT 080404PNR-RD, T490 LNHT 080408PNR, T490 LNHT 080412PNR, T490 LNHT 080416PNR, T490 LNMT 080408PNR, T490 LNMT 0804PNR, and T490 LNMT0804PNR-CS.

Installation Notes

This driver is used by machinists and toolroom technicians during indexable insert changes on face mill bodies. Before changing inserts, ensure the spindle is locked out and the toolholder is secure in a vise or holder to prevent movement. Apply only hand torque appropriate to the insert screw specification — do not use power tools or extensions that could over-torque and damage the screw or insert pocket. Inspect the driver tip regularly for wear, as a worn Torx Plus tip can damage insert screw heads.
