Iscar 7003102 Cap Screw Indexables M6 Hex Socket Camfix

Product Description

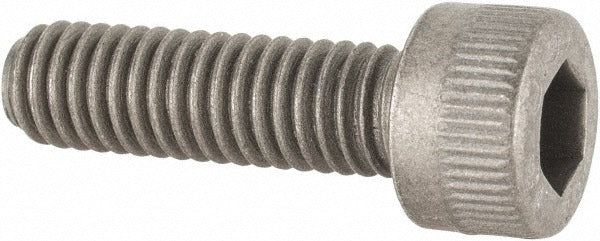

The ISCAR 7003102 is a fillister-head cap screw designed for securing indexable inserts and toolholder components in precision metal-cutting applications. Featuring an M6 thread and a 5 mm hex socket drive, this screw is part of the CAMFIX Modular Grip series and is engineered for consistent clamping force and repeatable insert seating. At 26.00 mm overall length and a package weight of approximately 0.002 pounds, it is a lightweight but critical hardware component. Installation requires the HW 5.0 key driver. Licensed machinists, CNC setup technicians, and toolroom personnel are the primary installers of this hardware.

This cap screw is used in grooving, parting, and turning operations where indexable toolholders require reliable insert retention. It is compatible with C-MAHD style toolholders and fits within the CAMFIX Modular Grip system, making it applicable in both production turning centers and manual lathe setups. The fillister head profile seats flush within recessed toolholder pockets, maintaining clearance in tight cutting geometries common to grooving and parting work.

Key Features

• M6 thread for secure indexable insert clamping
• 5 mm hex socket drive for precise torque application
• Fillister head design seats flush in recessed toolholder pockets
• 26.00 mm overall length suits standard CAMFIX Modular Grip toolholder configurations
• Compatible with HW 5.0 key driver for controlled installation
• Engineered for grooving, parting, and turning indexable tool systems

Compatibility

Compatible with C-MAHD style toolholders within the CAMFIX Modular Grip series. Requires HW 5.0 key driver for installation. Suitable for indexable toolholder systems used in grooving, parting, and turning applications.

Installation Notes

This screw is installed by CNC machinists or toolroom technicians during indexable insert changes or toolholder assembly. Power down the machine and engage the spindle lock before servicing any toolholder components. Use only the specified HW 5.0 hex key driver to avoid rounding the socket drive. Do not overtighten; follow the toolholder manufacturer's torque guidance for M6 clamping screws to prevent thread damage or insert distortion.
