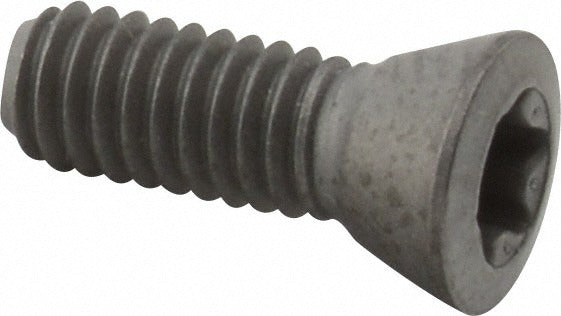

Iscar 7000212 Indexable Cap Screw T20 M4 X 0.7 Isoturn

Product Description

The ISCAR 7000212 is a countersunk-head cap screw designed to secure indexable inserts in compatible turning toolholders. It features a T20 Torx drive, M4 x 0.7 thread, and an overall length of 0.4724 inches (12.00 mm). This fastener is part of the Isoturn series and is intended for use with the A40U SVLFC toolholder style. Installation requires a T-20/5 key driver. Machining professionals and toolroom technicians rely on this hardware to maintain consistent insert seating and clamping force during turning operations.

This cap screw is used in CNC and manual turning applications where indexable carbide inserts must be securely fastened to the toolholder body. It is compatible with a defined list of VCGT and VCMT series inserts commonly used in finishing and semi-finishing turning operations. Typical installation occurs during insert indexing or replacement at the machine or on the bench. This part is sold individually, with a minimum order quantity of 5 units.

Key Features

• T20 Torx drive for positive torque engagement during tightening
• M4 x 0.7 thread size matches standard Isoturn toolholder insert pockets
• Countersunk head design sits flush with the insert seating surface
• 12.00 mm overall length suited for standard insert clamping depth
• Compatible with A40U SVLFC toolholder style
• Requires T-20/5 key driver for installation and removal

Compatibility

Designed for use with the A40U SVLFC toolholder style in the Isoturn series. Compatible inserts include: VCGT 110302-AS, VCGT 110304-AS, VCGT 160401-AS, VCGT 160402-AS, VCGT 160404-AS, VCGT 160404D, VCGT 160408D, VCMT 110302-SM, VCMT 110304-SM, VCMT 110308-SM, VCMT 160402-SM, VCMT 160404-14, VCMT 160404-SM, VCMT 160404T, VCMT 160408-14, VCMW 160404, and VCMW 160.

Installation Notes

Installation is performed by machinists or toolroom technicians during routine insert indexing or replacement. Power down and de-energize the machine before servicing the toolholder. Use the T-20/5 Torx key driver specified for this screw to avoid stripping the drive recess. Do not substitute an incorrect driver size, as this can damage the screw head and compromise insert clamping integrity.
