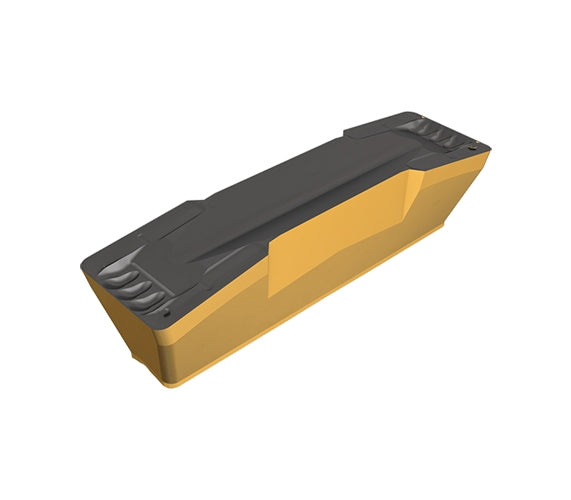

Iscar 6405082 GDMY-808 IC830 Carb Grv Insert W.315 R.031 Dbl-End

Product Description

The Iscar GDMY-808 IC830 Carbide Grooving Insert with a width of point three one five inches is designed for external grooving and turning. This insert features a maximum groove depth of one point zero six three inches and a corner radius of point zero three one inches. It operates effectively with stainless steel as well as high-temperature alloys.

• Insert Material: Carbide
• Coating: AlTiN+TiN
• Insert Designation: GDMY

Product Highlights

This insert is suitable for grooving and turning, ensuring efficient performance in demanding machining tasks.

Product Information

Standard Information

• Brand: Iscar
• Part Number: GDMY-808-IC830

Technical Specifications

• Insert Width: 0.3150 inches
• Max Groove Depth: 1.0630 inches
• Direction: Neutral
• Corner Radius: 0.0310 inches
• External/Internal: External
• Operation/Application: Grooving / Turning
• Coating/Finish: AlTiN+TiN
• Work Material: Stainless Steel + Hi Temp + Steel
• Min. Grooving Feed: 0.0071 inches
• Max. Grooving Feed: 0.0134 inches
• Min. Turning Feed: 0.0126 inches
• Max. Turning Feed: 0.0220 inches
• Insert Center Width: 0.2360 inches
