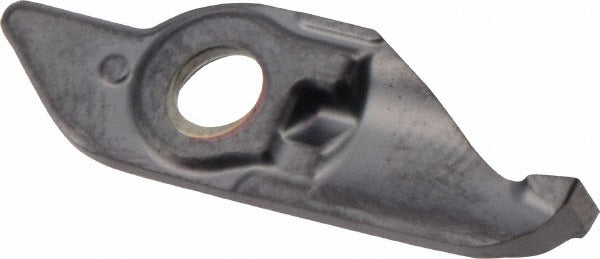

Iscar 6404048 Grooving Insert MIFR10300020 IC908 3mm Min-cut

Product Description

The ISCAR 6404048 is a solid carbide grooving insert carrying the MIFR10300020 form factor and IC908 manufacturer grade. Coated with TiAlN via a PVD process, it is designed for grooving, parting, and recessing operations on CNC lathes and turning centers. The insert measures 3.00 mm in cutting width with a maximum depth of cut of 9.00 mm, making it well-suited for medium-depth grooving passes in a single-end configuration. It belongs to ISCAR's Min-Cut series and is held in place by a clamp and screw mechanism. Machinists and CNC operators working in job shops or production environments are the typical users of this insert grade and geometry.

This insert is rated for universal primary workpiece material compatibility, covering material codes H, K, M, P, and S — meaning it handles hardened materials, cast iron, stainless and high-alloy steels, general steels, and superalloys. It fits into Min-Cut series toolholders designed to accept the MIFR insert style with the 10300020 size code. Neutral hand orientation means it can be positioned without a left- or right-hand restriction in compatible tooling setups. Typical applications include external and internal grooving on turned components across aerospace, automotive, and general manufacturing production runs.

Key Features

• IC908 grade with TiAlN PVD coating for extended tool life across a wide range of workpiece materials
• 3.00 mm cutting width and 9.00 mm maximum depth of cut for medium-depth grooving operations
• Neutral hand orientation for flexible toolholder setups
• Clamp and screw holding method provides rigid, repeatable insert seating
• Single-end insert geometry; conforms to ISO 13399 tooling data standards
• Multi-use tool designation allows use across grooving and related turning operations

Compatibility

Designed for use in ISCAR Min-Cut series toolholders accepting the MIFR insert style with size code 10300020. Compatible with workpiece material codes H, K, M, P, and S per the supplier specification. Verify toolholder pocket dimensions and clamping method before installation.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician with the machine in a fully stopped and locked-out state before changing inserts. Use the appropriate torx or hex key to seat the clamp screw to the toolholder manufacturer's specified torque for the Min-Cut pocket style. Inspect the insert pocket and clamping surfaces for chips or debris before seating the insert. Do not exceed the published maximum depth of cut of 9.00 mm to avoid insert fracture or premature edge failure.
