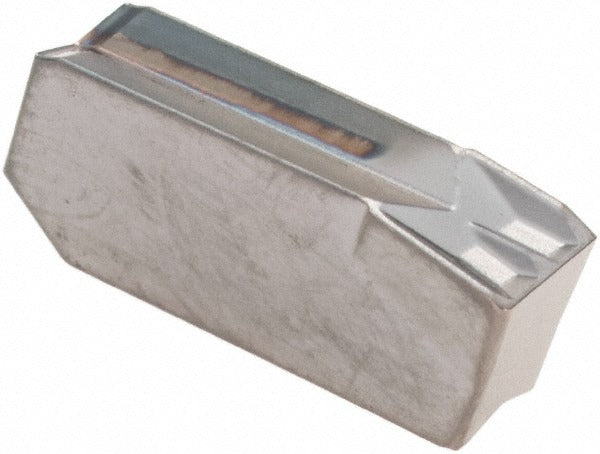

Iscar 6402268 Grooving Insert GIM48W IC354 Ticn

Product Description

The ISCAR 6402268 is a solid carbide grooving insert in the Cut-Grip series, designed for external grooving and parting operations on CNC lathes and turning centers. Manufactured to the GIM48W form factor with an IC354 PVD TiCN coating, this insert delivers a cutting width of 0.1575 inches (4.00 mm) and an overall length of 0.6024 inches (15.30 mm). The positive rake geometry and chip breaker designation W help manage chip flow in demanding materials. It is a right-hand insert intended for single-ended use. Machinists and toolroom technicians specify this insert for high-productivity grooving applications where coating wear resistance and edge stability are required.

This insert is suited for machining stainless steel and steel workpieces, corresponding to ISO material codes M and P. Typical applications include groove turning, face grooving, and parting on precision components in manufacturing environments. The clamp and screw holding method provides secure seating in compatible Cut-Grip toolholders. It is used in both production and job-shop settings where consistent groove width tolerance and surface finish are priorities.

Key Features

• Solid carbide substrate with PVD-applied TiCN coating for extended tool life in steel and stainless steel
• Cutting width of 0.1575 inches (4.00 mm) with a corner radius of 0.0098 inches (0.25 mm)
• Positive rake angle of 7 degrees reduces cutting forces on workpiece and toolholder
• Lead angle of 8 degrees and W chip breaker geometry promote controlled chip evacuation
• Clamp and screw holding method ensures rigid insert positioning in Cut-Grip toolholders
• Conforms to ISO 13399 tooling data standards for compatibility with CAM and tooling management systems

Compatibility

Designed for use with ISCAR Cut-Grip series toolholders that accept GIM size 48 grooving inserts. No additional specific compatible model numbers were provided in the product data.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Power down and lock out the machine spindle before seating or replacing the insert. Ensure the toolholder pocket and clamping surfaces are clean and free of chips before securing the insert with the clamp and screw. Do not exceed the toolholder's specified clamping torque and verify insert seating before resuming cutting operations.
