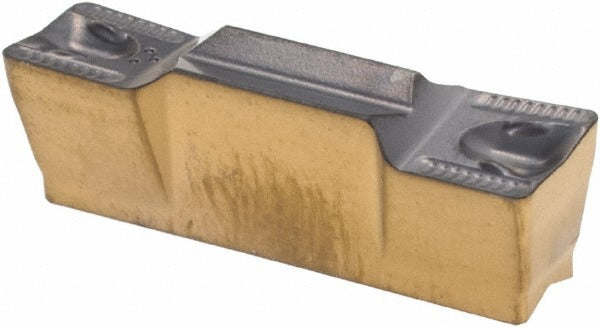

Iscar 6200458 Grooving Insert GRIP5005Y IC807 5mm

Product Description

The ISCAR 6200458 is a solid carbide grooving insert in the Heli-Grip series, designed for external and face grooving operations on CNC lathes and turning centers. It carries the GRIP5005Y insert style with a 5 mm cutting width and a maximum depth of cut of 3 mm. The IC807 grade substrate is submicron carbide with a PVD-applied TiAlN and Titanium Nitride finish, providing wear resistance and thermal stability across a wide range of workpiece materials. The neutral hand orientation suits standard straight-in grooving. A double-ended configuration extends usable insert life. This insert is installed and indexed by machinists and CNC setup technicians in production turning environments.

This insert is suited for grooving applications across universal workpiece material groups, including ISO material codes H, K, M, P, and S. It is appropriate for both high-volume production and job-shop turning operations where consistent groove geometry and dimensional accuracy are required. The Heli-Grip series tooling system uses a clamp-style insert holding method, securing the insert mechanically in compatible Heli-Grip holders. The 0.50 mm corner radius and chip breaker geometry designated Y help control chip formation during the cut.

Key Features

• 5 mm cutting width with a maximum depth of cut of 3 mm
• IC807 submicron carbide grade with PVD TiAlN and Titanium Nitride coating for extended tool life
• Double-ended insert design for two usable cutting edges per insert
• Neutral hand orientation for standard straight-in grooving
• 0.50 mm corner radius and Y-style chip breaker for controlled chip evacuation
• Compatible with ISO 13399 tooling data standards

Compatibility

Designed for use in ISCAR Heli-Grip series toolholders that accept the GRIP 5005 insert size using a clamp-style holding method.

Installation Notes

Installation and indexing of this insert should be performed by a qualified machinist or CNC technician. Power down and lock out the machine before accessing the toolholder. Use the appropriate torque wrench and clamp screw specified by the toolholder manufacturer when securing the insert. Inspect the insert seat and clamp for damage or debris before seating a new insert.
