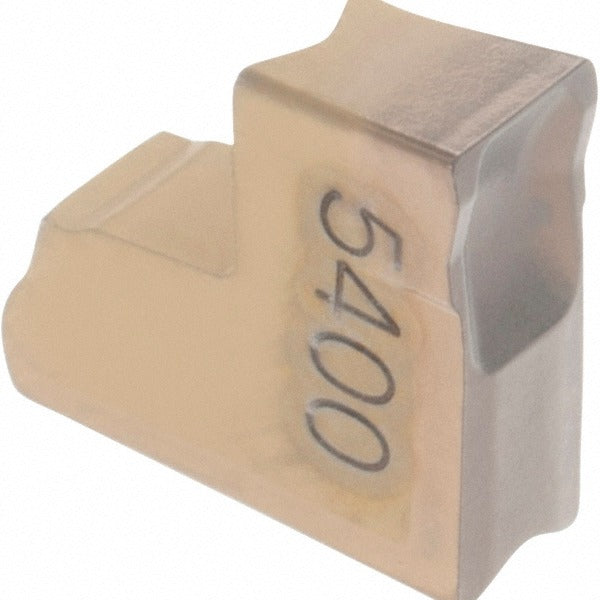

Iscar 6096839 Cutoff Insert IC5400 Carbide 3.05 Mm

Product Description

The ISCAR 6096839 is a solid carbide cutoff insert designed for parting and slitting operations on CNC lathes and turning centers. Part of the Tang-Grip series, this single-end insert features a 3.05 mm (0.1200 inch) cutting width and a neutral lead angle, making it suitable for straight plunge cutoff work. The IC5400 grade combines a CVD-applied multilayer coating of TiCN, Al2O3, and TiN over a carbide substrate, providing wear resistance and thermal stability during interrupted and continuous cuts. A 0.20 mm corner radius and a 7-degree relief angle support clean chip formation and edge durability at production feed rates.

This insert is applied in metalworking environments where precise cutoff and slitting of stainless steel and carbon steel workpieces is required. The C chipbreaker geometry is suited to moderate-depth grooving and parting operations in both production and job-shop settings. The clamp-style holding method secures the insert in compatible Tang-Grip toolholders. This insert is installed and replaced by CNC machinists and toolroom technicians working on lathes, turning centers, and multi-axis mill-turn machines.

Key Features

• IC5400 grade with CVD multilayer TiCN, Al2O3, and TiN coating for extended tool life on steel and stainless steel
• 3.05 mm (0.1200 inch) cutting width for consistent, repeatable parting and slitting
• Neutral lead angle and neutral hand for straight plunge cutoff applications
• 0.20 mm corner radius with C chipbreaker geometry for controlled chip evacuation
• 7-degree relief angle supports clearance and reduces flank wear
• Single-end, clamp-held insert in the Tang-Grip series for secure toolholder engagement

Compatibility

Designed for use with Tang-Grip series toolholders that accept TAG style inserts with a size code 3 profile. Rated for primary workpiece materials stainless steel (ISO material code M) and carbon steel (ISO material code P). Conforms to ISO 13399 insert identification standards.

Installation Notes

Insert replacement should be performed with the machine in a full stop condition, spindle off, and all axis motion halted before touching the toolholder. Use the appropriate ISCAR Tang-Grip clamping key or wrench to seat and secure the insert fully in the pocket before resuming cuts. Inspect the insert pocket and clamping surfaces for chips or damage before installing a new insert. Follow the toolholder manufacturer torque and clamping guidance for the specific Tang-Grip holder in use.
