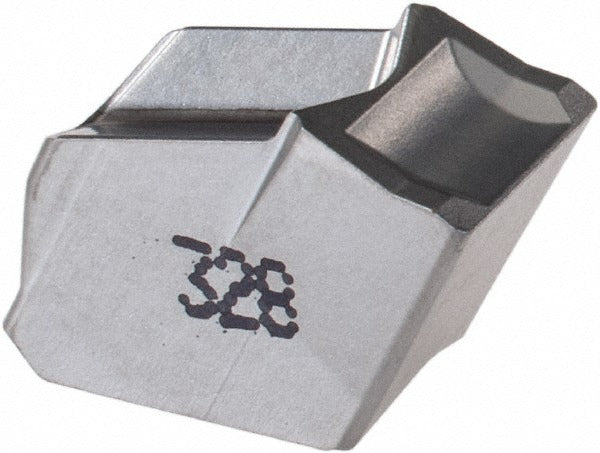

Iscar 6096095 Gfn 9 IC328 Carbide Cutoff Insert 9.5mm

Product Description

The ISCAR 6096095 is a solid carbide cutoff and grooving insert in the Self-Grip series, designed for precision parting and grooving operations on CNC lathes and turning centers. It carries ISCAR grade IC328, a PVD-coated carbide grade optimized for superalloy machining. The insert features a 9.5 mm (0.374 inch) cutting width, a neutral lead angle, and a relief angle of 7 degrees. A corner radius of 0.47 mm (0.0185 inch) provides controlled edge geometry for consistent chip formation. Sold as a single insert with a minimum order quantity of 10 pieces.

This insert is suited for grooving and parting applications on superalloys, steels, and stainless steels in production turning environments. The IC328 PVD coating delivers wear resistance and thermal stability at elevated cutting temperatures, making it a practical choice for difficult-to-machine materials. It is installed in compatible ISCAR Self-Grip toolholders and is appropriate for both roughing grooves and finish parting cuts. The neutral hand orientation allows use in standard right-hand turning setups.

Key Features

• Solid carbide construction, ISCAR grade IC328 with PVD coating for wear resistance on superalloys
• 9.5 mm (0.374 inch) cutting width suits standard grooving and parting requirements
• Neutral lead angle and 7-degree relief angle for stable, controlled cutting action
• 0.47 mm corner radius provides consistent chip control and edge integrity
• Clamp-held Self-Grip series design for secure insert retention in matching toolholders
• Single-end insert; compatible with ISO 13399 standardized tooling data

Compatibility

Designed for use in ISCAR Self-Grip series toolholders that accept the GFN 9 insert style. Primary workpiece material codes M, P, and S indicate suitability for steels, stainless steels, and superalloys. Material grades C2, C3, C5, and C6 applications are supported per the manufacturer catalog.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician with the machine in a fully stopped and locked-out state. Seat the insert fully into the Self-Grip clamp pocket and verify secure clamping before starting the spindle. Inspect the insert pocket and clamping surfaces for chips or debris before each insert change. Follow the toolholder manufacturer torque and clamping specifications; do not exceed clamp screw torque ratings.
