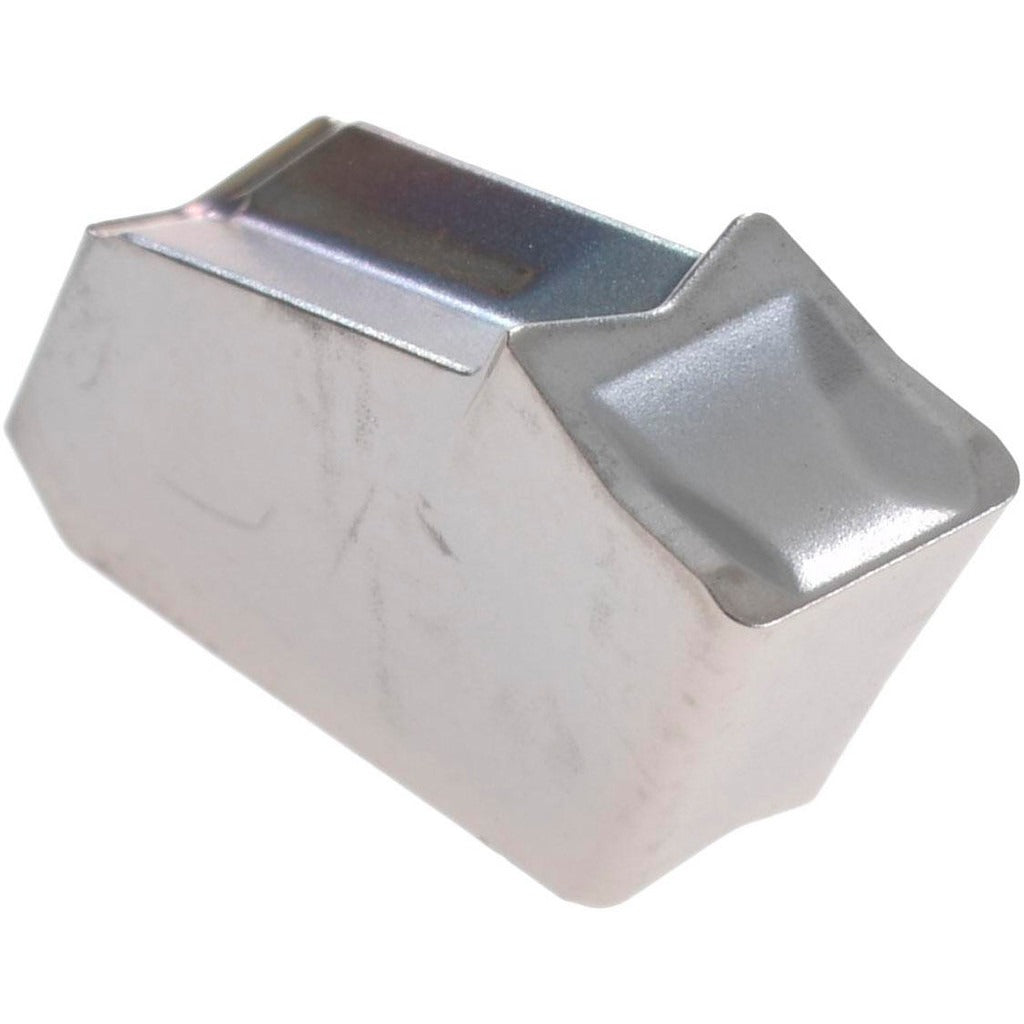

Iscar 6095135 GFN4B IC354 Carbide Cutoff Insert 4.1mm

Product Description

The ISCAR 6095135 is a single-end carbide cutoff and grooving insert designed for precision parting and grooving operations on CNC lathes and turning centers. Manufactured to the GFN 4B style with an IC354 PVD-coated carbide grade, this insert delivers consistent performance on stainless steel and steel workpieces. The cutting width measures 4.10 mm (0.1614 inches), with a neutral lead angle and a 7-degree relief angle. A corner radius of 0.40 mm (0.0157 inches) supports clean entry and reduces chipping at the cut edge. This insert is installed by machinists and CNC operators using a clamp-style holding method within the Self-Grip toolholder series.

This insert is suited for grooving and parting applications on stainless steel and carbon steel workpieces in both production and job-shop environments. The B chipbreaker geometry is optimized for chip control during interrupted and continuous cuts. The Self-Grip series clamping system secures the insert without additional screws, making indexing fast during high-volume turning operations. It is compatible with ISO 13399 compliant tooling systems and carries material grade designations C5 and C6, making it applicable across a broad range of turning center setups.

Key Features

• IC354 PVD-coated carbide grade for extended tool life on steel and stainless steel
• 4.10 mm cutting width with neutral lead angle for straight, clean parting cuts
• B chipbreaker geometry for effective chip control and evacuation
• 7-degree relief angle reduces cutting forces and tool pressure
• Self-Grip clamp holding method for fast, secure indexing without screws
• Conforms to ISO 13399 tooling data standards

Compatibility

Designed for use with ISCAR Self-Grip series toolholders accepting insert seat size 4. Compatible with ISO 13399 compliant grooving and parting systems. Primary workpiece materials are stainless steel (ISO material code M) and steel (ISO material code P).

Installation Notes

This insert is installed and indexed by qualified machinists or CNC operators. Power down and lock out the machine spindle before removing or seating the insert. Use proper insert handling practices to avoid edge chipping during installation. Verify the insert is fully seated and the clamp is secure before resuming cuts.
