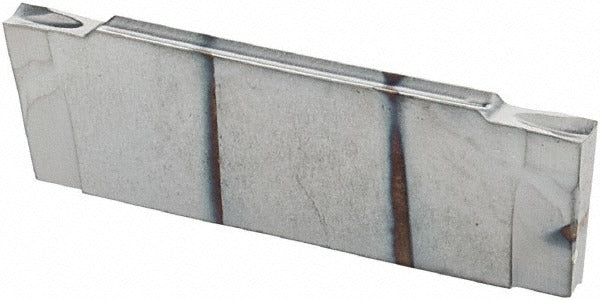

Iscar 6094317 Cutoff Insert 1.5mm Do-grip IC328 Carbide

Product Description

The ISCAR 6094317 is a solid carbide cutoff and parting insert in the Do-Grip series, designed for high-precision grooving and parting operations on CNC lathes and turning centers. It carries an IC328 PVD-coated carbide grade optimized for cutting superalloys and difficult-to-machine materials. The insert features a 1.5 mm (0.0591 inch) cutting width, an 8-degree right-hand lead angle, and a J chipbreaker geometry. Double-ended construction extends tool life by providing two usable cutting edges per insert. At 0.03 pounds, it is a compact, precision-ground insert held in place by a clamp-style toolholder.

This insert is suited for parting and grooving applications in aerospace, power generation, and general metalworking environments where superalloys, stainless steels, and high-temperature alloys are the primary workpiece materials. It is compatible with Do-Grip clamp-style toolholders that accept DGR-series inserts. The double-ended design makes it a practical choice for high-production turning operations where consistent chip control and edge integrity are critical.

Key Features

• Solid carbide construction with IC328 PVD coating for extended wear resistance in superalloy cutting
• 1.5 mm (0.0591 inch) cutting width for precise parting and grooving
• 8-degree right-hand lead angle with J chipbreaker geometry for controlled chip evacuation
• Double-ended insert design provides two cutting edges per insert
• Maximum depth of cut: 18.00 mm (0.7087 inch)
• Clamp-style insert holding method for secure, repeatable seating in Do-Grip toolholders
• Meets ISO 13399 standards for cutting tool data representation

Compatibility

Designed for use with Do-Grip series clamp-style toolholders that accept DGR insert geometry. Intended for parting and grooving of superalloys and materials within ISO workpiece material codes M, P, and S. Material grades C2, C3, C5, and C6 apply.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician. Power down and lock out the machine spindle before seating or replacing inserts. Ensure the toolholder pocket and clamping mechanism are clean and free of chips before installing the insert to maintain proper seating and prevent edge damage. Do not exceed the rated maximum depth of cut of 18.00 mm during operation.
