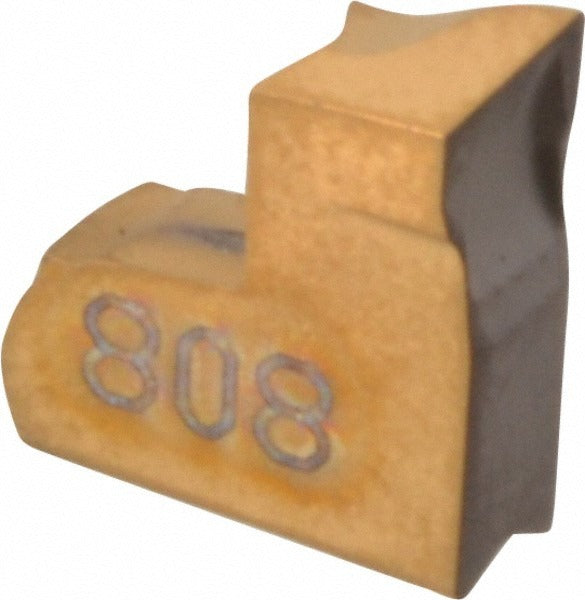

Iscar 6011433 Cutoff Insert TAGR3C15D IC808 3mm Tang-grip

Product Description

The ISCAR 6011433 is a solid carbide cutoff and parting insert in the Tang-Grip series, designed for precision grooving and parting operations on CNC lathes and turning centers. The insert carries ISCAR manufacturer grade IC808 with a PVD coating and features a 3.00 mm cutting width (0.1180 inches), a 15-degree right-hand lead angle, a 7-degree relief angle, and a 0.20 mm corner radius. The C chipbreaker geometry promotes controlled chip formation during parting cuts. This insert is intended for installation and use by machinists and tooling specialists working in production or job-shop turning environments.

The ISCAR 6011433 is suited for parting and cutoff applications across a broad range of workpiece materials. The IC808 grade with PVD coating is rated for universal application, with primary workpiece material codes covering H, K, M, P, and S material groups, making it compatible with steel, stainless steel, cast iron, non-ferrous materials, and heat-resistant superalloys. The material grade range is P15-P30. It is a single-end insert held by clamping within Tang-Grip compatible toolholders and is not designed for multi-use reversal.

Key Features

• 3.00 mm (0.1180 inch) cutting width for standard parting and grooving operations
• IC808 grade with PVD coating for extended tool life across universal workpiece materials
• 15-degree right-hand lead angle with C chipbreaker geometry for controlled chip evacuation
• 7-degree relief angle and 0.20 mm corner radius for edge integrity during parting cuts
• Tang-Grip clamping system provides secure insert retention under high cutting forces
• Conforms to ISO 13399 tooling data standards

Compatibility

Designed for use with Tang-Grip series toolholders that accept TAGR3 style inserts with clamp-type holding. Compatible workpiece material groups include H, K, M, P, and S per ISO designation.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician. Power down and lock out the machine spindle before seating or removing the insert. Ensure the Tang-Grip toolholder pocket and clamping surfaces are clean and free of chips before clamping the insert. Do not exceed the toolholder manufacturer's recommended cutting parameters for the insert style and workpiece material group.
