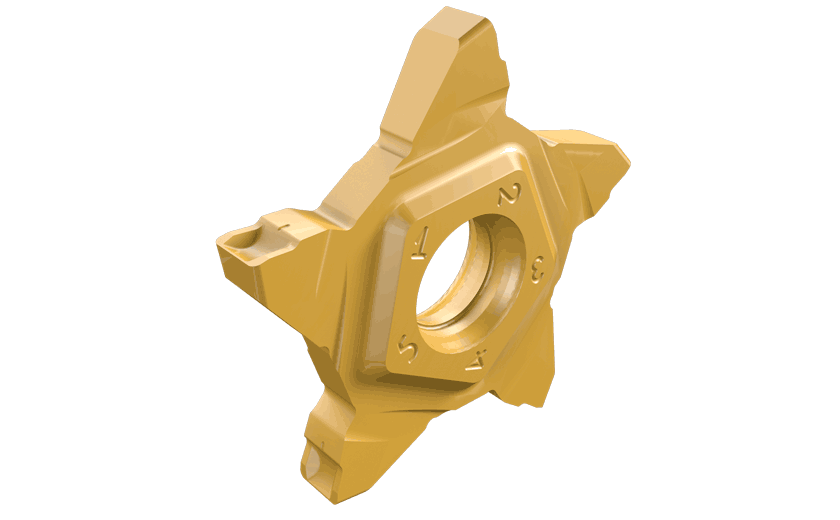

Iscar 6004781 PENTA-24N300C020-IC908 Power Disk w/5 Teeth

Product Description

The Iscar 6004781 PENTA-24N300C020-IC908 is a carbide insert designed for grooving and cut-off operations. This insert has a groove width of 0.1180 inches and a maximum groove depth of inches. With a diameter of 0.9450 inches, this insert offers a neutral cutting direction and a corner radius of 0.0080 inches.

• Insert Material: Carbide
• Coating/Finish: TiAlN
• Work Material Compatibility: Stainless steel, high-temperature steel, hardened metals, and cast iron

Product Highlights

This insert is suitable for various grooving tasks, providing excellent performance in demanding materials. It ensures consistent results in both general and specialized applications.

Product Information

Standard Information

• Brand: Iscar
• Part Number: PENTA-24N300C020-IC908

Technical Specifications

• Groove Width: 0.1180 inches
• Max Groove Depth: 0.2440 inches
• Insert Diameter: 0.9450 inches
• Direction: Neutral
• Corner Radius: 0.0080 inches
• Operation/Application: Grooving / Cut-off
• Insert Material: Carbide
• Coating/Finish: TiAlN
• Work Material: Stainless Steel, High-Temperature Steel, Hardened Metals, Cast Iron
• Min. Grooving Feed: 0.0039 inches
• Max. Grooving Feed: 0.0098 inches
