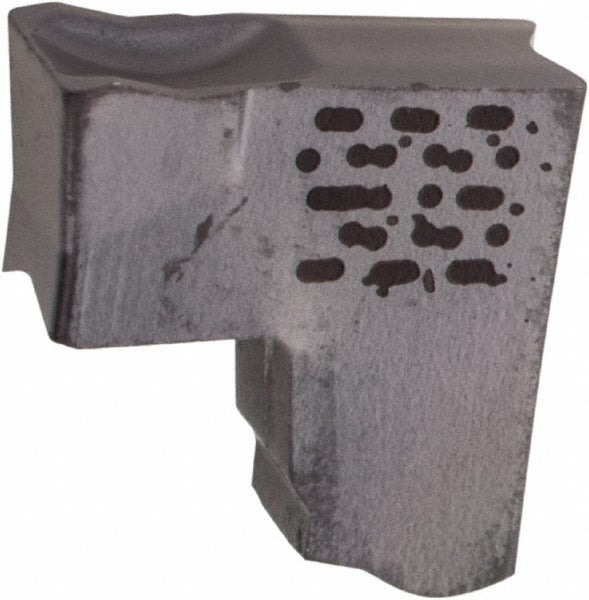

Iscar 6003367 Cutoff Insert 3.05mm IC908 Carbide Tang-grip

Product Description

The ISCAR 6003367 is a solid carbide cutoff and grooving insert designed for parting and slitting operations on CNC lathes and turning centers. It belongs to the Tang-Grip series and features a 3.05 mm (0.1180 inch) cutting width with a neutral lead angle, making it suitable for straight plunge cuts. The insert is manufactured in IC908 carbide grade with a PVD coating process, delivering a wear-resistant edge that performs across a broad range of workpiece materials. A 7-degree relief angle and a 0.20 mm corner radius (0.0079 inch) contribute to stable chip control during deep grooving and cutoff passes. The C chipbreaker geometry is integrated into the insert profile.

This insert is used in production turning environments where consistent cutoff and slitting performance is required. It is rated for universal primary workpiece material compatibility, covering ISO material groups H, K, M, P, and S, which span hardened steels, cast irons, stainless steels, carbon steels, and superalloys. Typical applications include parting workpieces from bar stock, external grooving, and light slitting operations. Machinists and CNC operators working in job shops or production facilities are the primary installers of this insert type.

Key Features

• IC908 carbide grade with PVD coating for extended edge life and thermal resistance
• 3.05 mm cutting width with neutral lead angle for straight plunge cutoff
• 7-degree relief angle supports chip clearance and reduced cutting forces
• 0.20 mm corner radius for controlled groove floor finish
• C chipbreaker geometry integrated for chip control in grooving operations
• Compatible with ISO 13399 tool data standards for CAM integration
• Multi-use insert suitable for both cutoff and slitting applications

Compatibility

Designed for use in Tang-Grip series cutoff and grooving toolholders. Insert is compatible across ISO material groups H, K, M, P, and S as specified by the manufacturer. Conforms to ISO 13399 standards.

Installation Notes

This insert is installed by a machinist or CNC tooling technician. Power down and lock out the machine spindle before changing inserts. Ensure the Tang-Grip toolholder pocket is clean and free of chips before seating the insert. Use the appropriate ISCAR Tang-Grip clamping tool to seat and secure the insert; do not strike the insert directly with hard tools.
