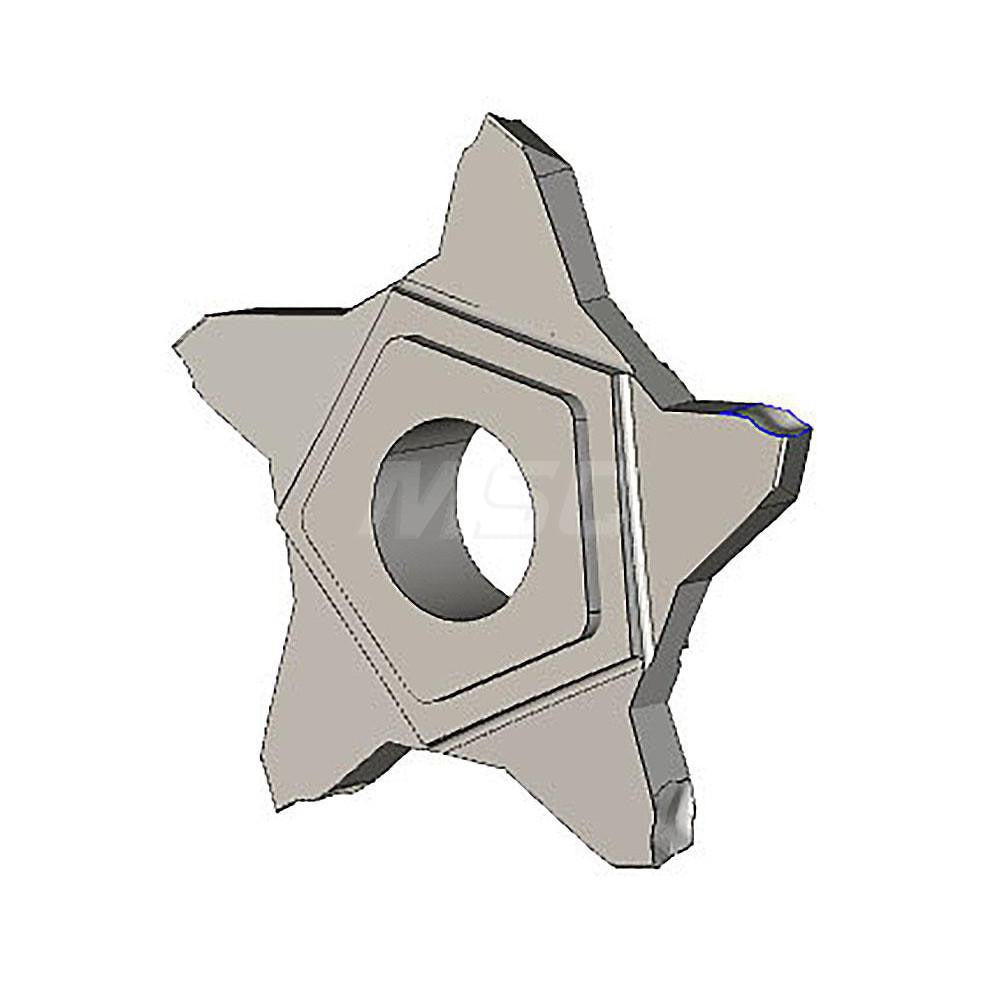

Iscar 6003102 Grooving Insert Penta IC1008 2mm Rh

Product Description

The ISCAR 6003102 is a solid carbide grooving insert in the PENTA series, designed for external grooving and parting operations on CNC lathes and turning centers. Designated PENTA24R200J15DJ with manufacturer grade IC1008, this right-hand insert features a 2 mm cutting width and a maximum depth of cut of 6 mm. The PVD-applied TiAlN and TiN coating combination delivers thermal resistance and wear protection across a broad range of workpiece materials. Screw-clamped insert holding ensures repeatable seating and rigid tool engagement during interrupted or continuous grooving passes.

This insert is suited for universal application across ferrous and non-ferrous materials, including steel, stainless steel, cast iron, aluminum, high-temperature alloys, and hardened materials, as indicated by primary workpiece material codes H, K, M, N, P, and S. It is appropriate for both production and job-shop environments where consistent groove geometry and surface finish are required. The J chip breaker geometry aids in chip control during medium-depth grooving operations. Installation is performed by qualified machinists and CNC operators on compatible PENTA series toolholders.

Key Features

• Solid carbide construction with PVD TiAlN and TiN coating for extended tool life
• 2 mm cutting width with 0.10 mm corner radius for precise groove geometry
• Maximum depth of cut of 6 mm, within a range of 5 mm to 10 mm
• Right-hand orientation with screw insert holding method for secure clamping
• J chip breaker geometry for effective chip management
• Conforms to ISO 13399 tooling data standards

Compatibility

Designed for use with compatible PENTA series toolholders that accept the 24R200J15D insert size. Suitable for material grades C1, C2, C3, C5, and C6 per ISO classification, covering universal workpiece material applications.

Installation Notes

Installation and insert changes should be performed by a qualified machinist or CNC tooling technician with the machine in a safe, powered-down or tool-change state. Use the appropriate torx or hex key as specified by the toolholder manufacturer to achieve proper clamping torque without overdriving the screw. Inspect the insert pocket and clamping screw for wear or debris before seating the insert. Do not exceed the maximum depth of cut or feed rate limits defined by the toolholder and machine tool specifications.
