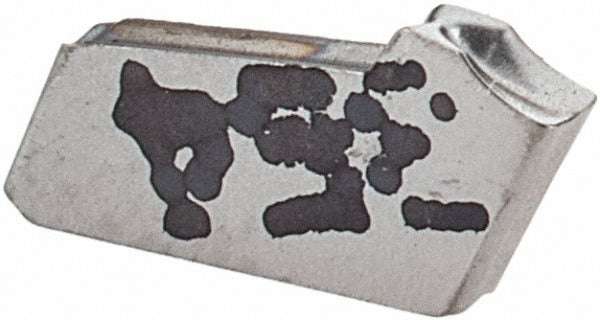

Iscar 6002544 Cutoff Insert Gfn 1.2J IC354 1.2 Mm

Product Description

The ISCAR 6002544 is a solid carbide cutoff and grooving insert in the Self-Grip series, designed for precision parting and grooving operations on CNC lathes and turning centers. It carries the GFN 1.2J geometry with a 1.2 mm (0.0472 inch) cutting width, a neutral lead angle, and a 7-degree relief angle. The IC354 grade features a PVD coating optimized for cutting stainless steel and carbon steel. A 0.14 mm corner radius (0.0055 inch) controls chip formation at the cutting edge, and the J chipbreaker geometry manages chip curl in interrupted and continuous cuts alike.

This insert is suited for grooving and parting applications in both production and job-shop environments. Primary workpiece materials include stainless steel and general carbon and alloy steels, corresponding to ISO material codes M and P. The single-end insert seats into compatible Self-Grip toolholders and is held in place by a clamping mechanism, making it appropriate for moderate to high-volume turning operations where consistent cut width and surface finish are required.

Key Features

• 1.2 mm (0.0472 inch) cutting width for narrow parting and grooving slots
• IC354 PVD-coated carbide grade optimized for stainless steel and steel workpieces
• Neutral lead angle and 7-degree relief angle for balanced cutting forces
• J chipbreaker geometry for controlled chip evacuation
• 0.14 mm corner radius for defined edge geometry
• Compatible with Self-Grip clamping system toolholders

Compatibility

Designed for use with ISCAR Self-Grip series toolholders that accept the GFN insert style. Verify toolholder seat dimensions and clamping configuration before installation.

Installation Notes

Insert installation should be performed by a qualified machinist or tooling technician. Power down and lock out the machine spindle before seating or removing the insert. Use the correct clamping screw torque as specified by the toolholder manufacturer documentation. Inspect the insert seat and clamping surfaces for chips or debris before securing the insert.
