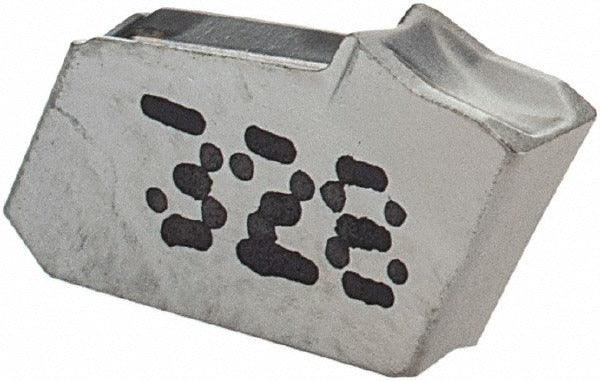

Iscar 6002434 Gsfn 2 IC328 Milling Insert Solid Carbide

Product Description

The ISCAR 6002434 is a solid carbide milling insert designed for grooving and parting operations on CNC milling machines and turning centers. Carrying the ANSI/ISO designation GSFN 2 IC328, this insert features a rectangular shape with a 2.00 mm (0.0790 inch) cutting width and a 0.3150 inch thickness. The IC328 grade substrate is PVD-coated with TiCN, delivering a hard, wear-resistant surface suited to high-speed cutting. With a positive rake geometry, a 7-degree relief angle, and a honed cutting edge, the insert produces clean, accurate grooves while reducing cutting forces. It is sold individually and must be ordered in multiples of 10.

This insert is intended for grooving and parting applications on steel, stainless steel, superalloys, and titanium workpieces, corresponding to ISO material groups P, M, and S. It is well suited for precision grooving in aerospace, energy, and general metalworking production environments. The neutral hand orientation makes it adaptable to both left- and right-hand setups. The insert mounts using the Self Grip holding method and is compatible with ISCAR SGSF cutter bodies.

Key Features

• PVD TiCN coating improves wear resistance and extends tool life on hard and abrasive workpiece materials
• Positive rake angle and honed cutting edge reduce cutting forces and minimize edge chipping
• 2.00 mm cutting width (0.0790 inch) with a 0.42 mm corner radius for precise groove geometry
• Single-sided insert with one cutting edge; neutral hand orientation suits a range of setups
• Self Grip clamping method provides secure, repeatable insert positioning without additional clamping hardware
• Conforms to ANSI and ISO 13399 standards for interchangeability and tooling data compatibility

Compatibility

Designed for use in ISCAR SGSF series cutter bodies that accept the GSFN 2 insert size and Self Grip holding method. Suitable for machining steel, stainless steel, superalloys, and titanium (ISO material groups P, M, and S).

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician with the machine powered off and the spindle fully locked. Verify that the cutter body pocket is clean and free of chips before seating the insert. Self Grip inserts rely on the clamping force of the slot; do not modify the pocket or force the insert. Follow the toolholder manufacturer torque and setup guidelines when assembling the cutter body.
