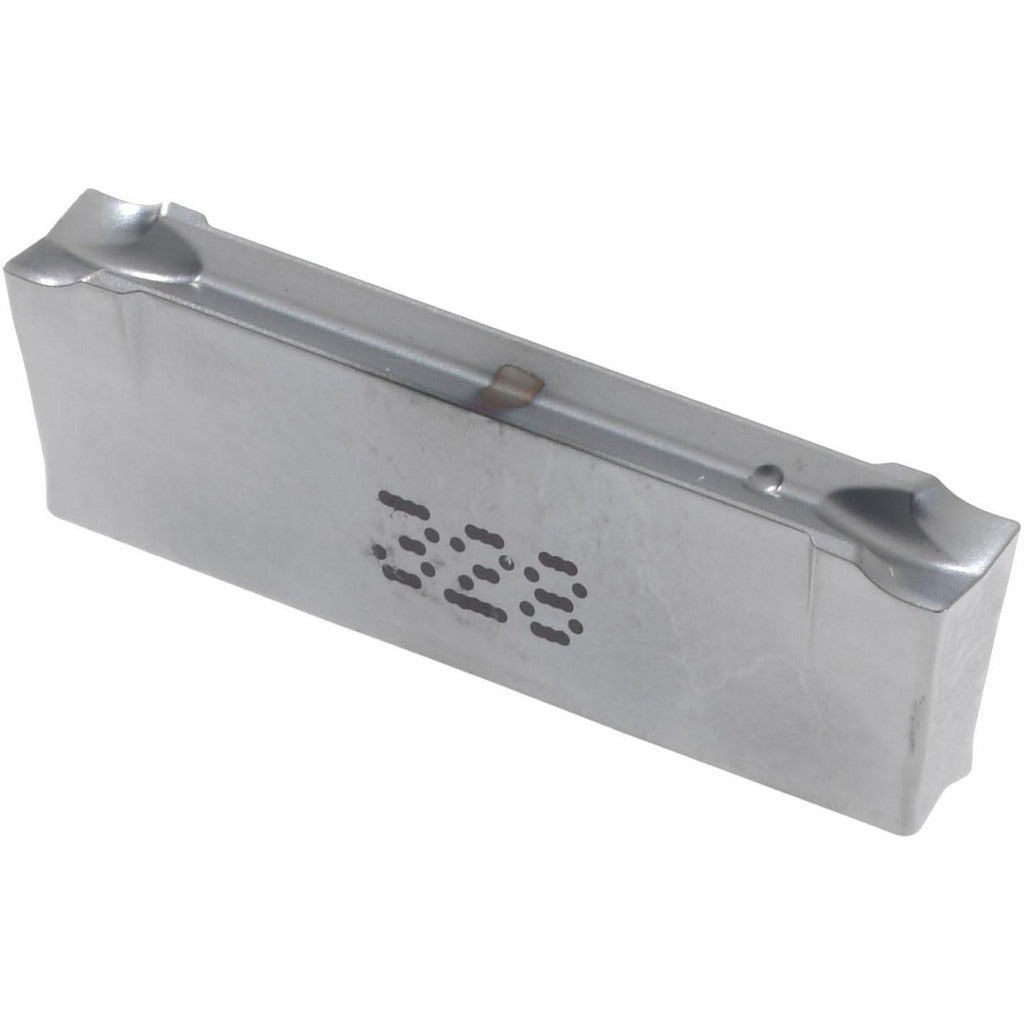

Iscar 6002418 DGN3102J IC328 Carbide Cutoff Insert 3.1mm

Product Description

The ISCAR 6002418 is a double-ended carbide cutoff and grooving insert in the Do-Grip series, designed for precision parting and grooving operations on CNC lathes and turning centers. The insert carries grade IC328 with a PVD coating for extended tool life in demanding cuts. It features a 3.10 mm (0.1220 inch) cutting width, a neutral lead angle, and a 7-degree relief angle. The J chipbreaker geometry supports chip control across a range of feed rates. Licensed machinists and CNC operators install this insert into compatible Do-Grip clamp-style toolholders for high-repeatability grooving work.

This insert is suited for grooving and parting applications on superalloys as its primary workpiece material, with material grade ratings of C2, C3, C5, and C6. The double-end design allows both ends of the insert to be used, extending service life per insert. Typical applications include OD grooving, face grooving, and parting operations on small-to-medium diameter workpieces in production and job-shop environments. The maximum depth of cut reaches 18.00 mm (0.7087 inch), making it capable of moderate parting depths.

Key Features

• IC328 PVD-coated carbide grade optimized for superalloy and steel cutting
• 3.10 mm cutting width with 0.20 mm corner radius for clean groove walls
• Double-ended insert design for two usable cutting edges per insert
• J chipbreaker geometry for reliable chip evacuation during grooving and parting
• Neutral lead angle and 7-degree relief angle reduce lateral cutting forces
• Clamp-style holding method compatible with Do-Grip toolholder system

Compatibility

Designed for use with Do-Grip series clamp-style toolholders accepting DGN insert style. Manufacturer catalog reference number is DGN 3102J. Minimum order quantity is 10 inserts.

Installation Notes

Installation is performed by qualified CNC machinists or toolroom technicians. Power down and lock out the machine before changing inserts. Seat the insert fully into the Do-Grip pocket and verify clamp torque per toolholder manufacturer specifications before resuming cuts. Inspect the pocket and clamp for wear or debris prior to each insert change to maintain seating accuracy.
