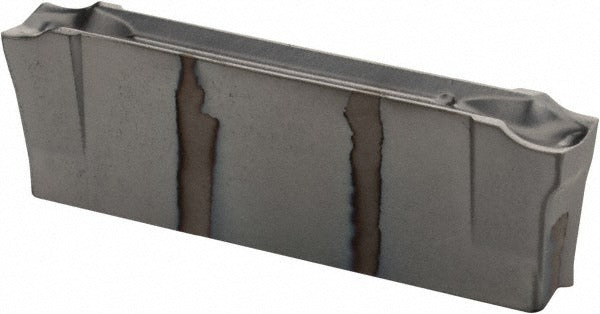

Iscar 6002356 Cutoff Insert Dgr 3102J-6D IC354 3.1mm

Product Description

The ISCAR 6002356 is a solid carbide cutoff and parting insert in the Do-Grip series, designed for precision grooving and parting operations on CNC turning centers and lathes. It carries manufacturer grade IC354, a PVD-coated carbide grade optimized for stainless steel and steel workpiece materials. The insert features a 3.10 mm cutting width (0.1220 inches), a 6-degree right-hand lead angle, a 7-degree relief angle, and a J chipbreaker geometry. The double-ended design extends usable tool life per insert. This insert is specified and installed by machinists and tooling technicians working in precision metalworking environments.

This insert is suited for parting and cutoff applications on stainless steel and steel workpieces, particularly where surface finish and chip control are critical. The J chipbreaker geometry supports controlled chip evacuation in these materials. The Do-Grip clamping system secures the insert in compatible Do-Grip toolholders. It is a right-hand insert intended for standard right-hand turning setups. Minimum order quantity is 10 pieces; each package contains 1 insert.

Key Features

• Solid carbide construction with PVD coating for wear resistance on stainless steel and steel
• 3.10 mm (0.1220 inch) cutting width for consistent parting groove dimensions
• 6-degree right-hand lead angle with 7-degree relief angle for clean entry and reduced rubbing
• J chipbreaker geometry for controlled chip formation and evacuation
• Double-ended insert design for extended tool life per unit
• Clamp-held via Do-Grip system for secure, repeatable seating

Compatibility

Designed for use in ISCAR Do-Grip series toolholders that accept DGR-style inserts with a 3102 size code. Primary workpiece materials are stainless steel and steel, corresponding to ISO material codes M and P.

Installation Notes

Installation is performed by qualified machinists or tooling technicians. Ensure the machine spindle is fully stopped and locked out before seating or replacing the insert. Use the appropriate Do-Grip clamping mechanism to secure the insert fully before cutting; do not attempt cuts with a partially seated insert. Verify insert orientation matches the right-hand setup before engaging the workpiece.
