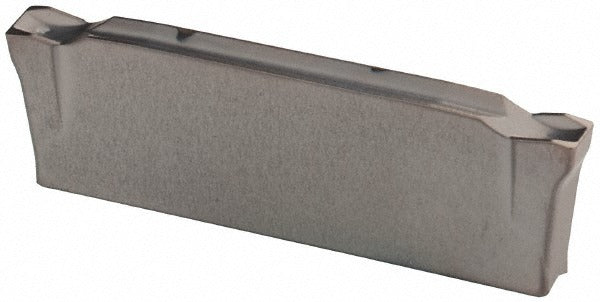

Iscar 6002326 Cutoff Insert Dgr 2202C-6D IC354 2.2mm

Product Description

The ISCAR 6002326 is a solid carbide cutoff and parting insert from the Do-Grip series, designed for precision grooving and parting operations on CNC lathes and turning centers. Identified by manufacturer catalog number DGR 2202C-6D, it carries the IC354 grade with a PVD coating for enhanced wear resistance. The insert features a 2.2 mm cutting width and a double-end design, allowing both ends to be indexed for extended tool life. A 6-degree right-hand lead angle and a 0.20 mm corner radius support clean chip evacuation and accurate shoulder geometry on demanding workpieces.

This insert is suited for parting and deep grooving applications in steel and stainless steel, covering ISO material codes P and M. It is typically used in production turning environments where consistent cut-off quality and dimensional repeatability are required. The clamp-style holding method secures the insert firmly in compatible Do-Grip toolholders. Maximum depth of cut reaches 18.00 mm, making it capable of parting moderate-diameter bar stock without tool deflection.

Key Features

• Solid carbide construction with IC354 grade and PVD coating for wear and heat resistance
• 2.2 mm cutting width with 6-degree right-hand lead angle for directional chip control
• Double-end design indexes to a fresh cutting edge, extending insert service life
• 0.20 mm corner radius reduces stress concentration at the cut shoulder
• Maximum depth of cut of 18.00 mm supports parting of medium bar diameters
• Compatible with clamp-style Do-Grip toolholders; meets ISO 13399 identification standards

Compatibility

Designed for use with clamp-style ISCAR Do-Grip series toolholders that accept the DGR 2202 insert size. Optimized for cutting steel and stainless steel workpiece materials per ISO material codes P and M.

Installation Notes

Installation is performed by machinists or CNC tooling technicians. Power down and lock out the machine spindle before seating or removing the insert. Use the correct torque wrench per the toolholder manufacturer's specification when tightening the clamp screw. Inspect the insert pocket and clamp for debris or wear before indexing to the second cutting edge.
