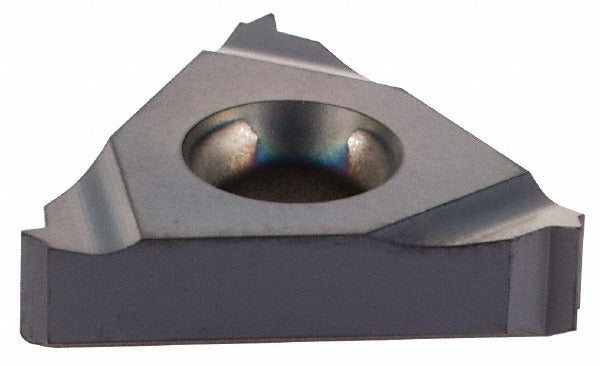

Iscar 5901966 Laydown Threading Insert 24 Tpi 3/8 Inch

Product Description

The ISCAR 5901966 is a laydown threading insert designed for external UN thread cutting at 24 threads per inch (TPI). Built from solid carbide with an IC908 grade and a PVD-applied TiAlN coating, it delivers wear resistance and heat management in demanding threading operations. The insert features a 3/8 inch (0.3750 inch decimal) inscribed circle and a 0.1430 inch thickness. Its 16ER style and right-hand orientation make it a direct fit for standard external threading toolholders. Licensed machinists and CNC operators use this insert for production threading on steel, cast iron, stainless, aluminum, and heat-resistant alloys.

This insert is suited for external UN thread profiles on a wide range of workpiece materials, including those classified under material grades C1, C2, C6, and C7. The IC908 carbide substrate combined with PVD TiAlN coating targets universal material applications, covering workpiece material codes H, K, M, N, P, and S. It is appropriate for both job-shop and production environments where consistent thread form and tool life matter. Sold individually, with a minimum order quantity of 5 units.

Key Features

• IC908 solid carbide grade with PVD TiAlN coating for extended tool life across multiple material groups
• 24 TPI external UN thread form, right-hand cut
• 3/8 inch inscribed circle (0.3750 inch decimal) — 16ER insert style
• 0.1430 inch insert thickness
• Corner radius of 0.12 mm for controlled thread root geometry
• Conforms to ISO 13399 tooling data standards

Compatibility

Designed as an OEM-style replacement threading insert for external UN thread applications using 16ER-style laydown insert toolholders. Compatible with workpiece material grades C1, C2, C6, and C7 and primary workpiece material codes H, K, M, N, P, and S as specified by ISCARTHREAD series tooling.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator with the machine fully powered down and the spindle locked before insert indexing or replacement. Use the correct torque wrench and insert screw specified by the toolholder manufacturer — do not overtighten. Verify the insert seats flush in the pocket before resuming cutting operations. Inspect the toolholder pocket for wear or debris that could affect insert seating and thread accuracy.
