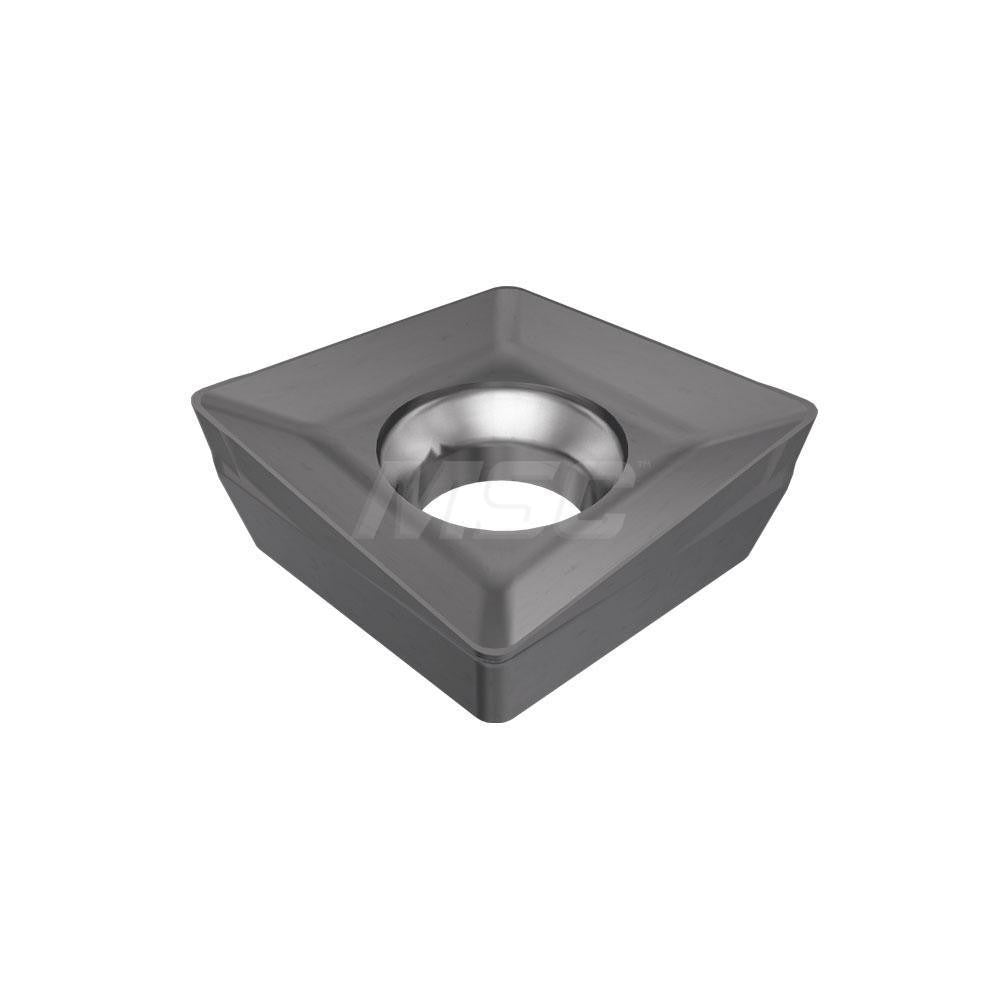

Iscar 5694787 XOMT06HQ IC910 Carbide Indexable Drill Insert

Product Description

The ISCAR 5694787 is a square-geometry indexable drill insert designed for use in indexable insert drills on machining centers and CNC lathes. Manufactured from solid carbide with an IC910 grade PVD coating, this insert delivers consistent cutting performance in demanding drilling applications. The XOMT style seat features a 90-degree included angle and an HQ chipbreaker geometry, promoting reliable chip control and reduced cutting forces. With an inscribed circle of 0.2425 inches and a corner radius of 0.0157 inches, this insert is suited to precision hole-making operations in ferrous materials. Installation and indexing are performed by qualified machinists as part of routine tooling maintenance.

This insert is intended for use in ISCAR DRDRILLS series indexable drill bodies requiring XOMT 060204 style inserts. It is primarily applied in drilling cast iron and steel workpieces, covering ISO material groups K and P respectively. Typical install scenarios include production machining environments where consistent tool life and repeatable hole quality are required. The HQ chipbreaker geometry makes this insert well suited to interrupted cuts and through-hole drilling in both roughing and semi-finishing operations.

Key Features

• IC910 grade PVD-coated solid carbide construction for extended tool life in cast iron and steel
• HQ chipbreaker geometry promotes positive chip evacuation and reduced cutting forces
• 90-degree square insert geometry compatible with XOMT 060204 seat style
• Inscribed circle of 0.2425 inches provides precise engagement in matched drill bodies
• Corner radius of 0.0157 inches (0.40 mm) supports controlled entry and reduced chipping at the cutting edge
• Conforms to ISO 13399 tooling data standards for easy integration with tool management systems

Compatibility

Designed for use in ISCAR DRDRILLS series indexable drill bodies that accept XOMT 060204T-HQ style inserts with an IC910 grade seat specification.

Installation Notes

Indexable insert replacement should be performed by a qualified machinist or tooling technician with the machine in a fully de-energized and locked-out state. Use the appropriate torx or hex key driver to the drill body manufacturer torquing guidelines when seating the insert. Ensure the insert pocket is free of chips and debris before indexing or replacing. Never run a damaged or improperly seated insert, as this can result in tool body damage or workpiece scrap.
