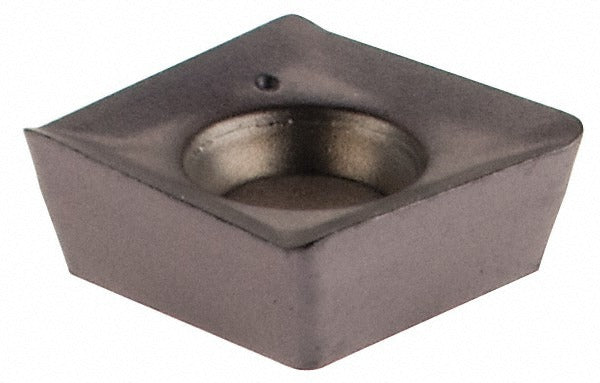

Iscar 5692008 Somt 060204-HQ IC928 Milling Insert

Product Description

The ISCAR 5692008 is a solid carbide milling insert designated SOMT 060204-HQ in grade IC928, designed for high-productivity face and shoulder milling operations. The insert features a square shape with a 90-degree included angle and a positive rake geometry, promoting free-cutting action and reduced cutting forces. A TiAlN PVD coating provides thermal resistance and wear protection when machining steel, stainless steel, superalloys, and titanium. With four usable cutting edges and a honed cutting edge style, this single-sided insert delivers consistent performance across tool changes. It is held in the cutter body by screw clamping.

This insert is engineered for use in ISCAR HELIQUAD series milling cutters, specifically the E45X and E90X cutter bodies. It is suited for both roughing and semi-finishing passes on steel and high-temperature alloys in manufacturing and job shop environments. The insert size code is 060204, with a maximum depth of cut of 0.157 inches and a cutting edge effective length of 0.2268 inches. It targets ISO material groups P, M, and S, making it a practical choice for general machining as well as demanding aerospace and stainless applications.

Key Features

• TiAlN PVD coating for heat resistance and extended tool life in steel and superalloy cutting
• Four cutting edges per insert for reduced tooling cost per edge
• Positive rake geometry reduces cutting forces and minimizes heat generation
• Honed cutting edge style provides edge stability and chip control
• Screw-clamping insert holding method ensures secure, repeatable seating in the cutter body
• Neutral hand orientation fits standard HELIQUAD E45X and E90X cutter bodies

Compatibility

Compatible with ISCAR HELIQUAD series cutter bodies E45X and E90X. Rated for ISO material groups P (steel), M (stainless steel), and S (superalloys and titanium). Insert size code 060204 with ANSI designation SOMT 060204-HQ IC928 and ISO designation SOMT 060204-HQ.

Installation Notes

Installation is performed by a machinist or tooling technician using the appropriate screw-clamping torx or hex key specified by the cutter body manufacturer. Ensure the machine spindle is fully stopped and locked out before indexing or replacing inserts. Inspect the insert pocket seat and clamping screw for wear or debris before seating a new insert. Do not exceed the maximum depth of cut of 0.157 inches to avoid edge chipping or insert fracture.
