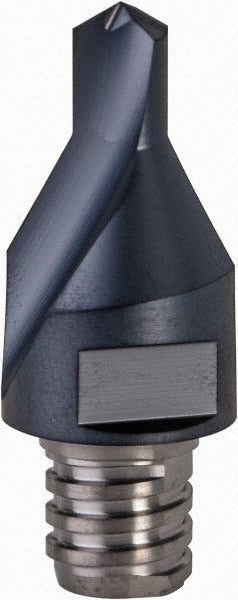

Iscar 5622353 Center Drill Milling Tip Carbide IC908

Product Description

The ISCAR 5622353 is a replaceable carbide milling tip designed for center drilling operations in the Multimaster (MM ECS) modular tooling system. Manufactured from sub-micrograin carbide in the IC908 grade with a TiAlN coating applied via PVD process, this tip delivers consistent performance across a broad range of workpiece materials. The right-hand cutting geometry features 2 flutes with a 90-degree lead angle and a 120-degree included angle. Functional length is 1.1032 inches with a cutting diameter of 0.2545 inches, making it well suited for precise center drilling and spot drilling applications in production environments.

This milling tip is intended for use in the ISCAR Multimaster MM ECS modular system, insert size A6.30X16. It is rated for use on steel, stainless steel, cast iron, non-ferrous metals, superalloys, titanium, and hard materials, covering ISO material codes P, M, K, N, S, and H. Typical install environments include CNC machining centers in both job shop and production settings where quick tip changes and consistent tool geometry are required. Licensed machinists and CNC operators handling precision milling, drilling prep, and multi-operation setups are the primary users of this tip style.

Key Features

• Sub-micrograin carbide construction in IC908 grade for wear resistance and edge integrity
• TiAlN coating via PVD process for thermal resistance and extended tool life
• 2-flute right-hand cutting geometry with 90-degree lead angle and 120-degree included angle
• Compatible with a wide range of workpiece materials including superalloys and hard materials
• Replaceable tip design reduces downtime by allowing tip swap without removing the tool body
• Conforms to ANSI standards

Compatibility

Designed for use with the ISCAR Multimaster MM ECS modular tooling system, insert size A6.30X16, as part number MM ECS-A6.30X16-2T10.

Installation Notes

This tip is installed and changed by machinists or CNC tooling technicians. Always power down and lock out the machine spindle before performing a tip change. Use the appropriate ISCAR Multimaster torque key or driver specified for the MM ECS coupling to seat the tip correctly. Do not overtighten by hand or use non-specified tools, as improper seating can affect runout and tip security during cutting.
