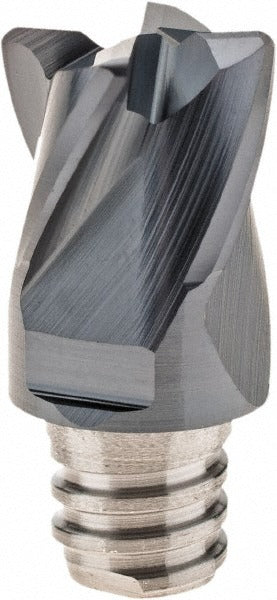

Iscar 5621476 Corner Radius Milling Tip 0.375 in 4 Flute

Product Description

The ISCAR 5621476 is a corner radius end replaceable milling tip designed for use in the Multimaster MM EC-4 modular tooling system. Made from sub-micrograin carbide with an IC908 manufacturer grade and a PVD-applied TiAlN coating, this tip delivers wear resistance across a broad range of workpiece materials. It features 4 flutes with a 30-degree helix angle and a 90-degree lead angle, producing a 0.375-inch cutting width and a maximum depth of cut of 0.275 inches. Functional length and overall extension from holder are both 0.512 inches. Right-hand cutting geometry and no chipbreaker define the standard configuration. Licensed HVAC, machining, and tool-and-die professionals install this tip in production and maintenance environments.

This milling tip is suited for applications involving steel, stainless steel, cast iron, non-ferrous metals, superalloys, titanium, and hard materials, covering ISO material codes P, M, K, N, S, and H. The MM EC-4 series design makes it appropriate for use in high-productivity milling operations where quick tip changes and consistent performance are required. The 0.030-inch corner radius reduces edge chipping on entry and exit cuts, making it a practical choice for both roughing and semi-finishing passes on difficult-to-machine alloys and hardened materials.

Key Features

• Sub-micrograin carbide substrate with IC908 grade for strength and thermal stability
• PVD TiAlN coating for extended tool life in steel, stainless, and superalloy cuts
• 4-flute, 30-degree helix geometry for efficient chip evacuation
• 0.030-inch corner radius reduces chipping and improves edge durability
• 0.375-inch cutting width with 0.275-inch maximum depth of cut
• Right-hand cutting orientation; ANSI standard compliant

Compatibility

Designed for use in the ISCAR Multimaster MM EC-4 modular end milling system. Insert size designation is .375A27R030. This tip does not include through-coolant capability and requires a compatible Multimaster holder for proper assembly.

Installation Notes

Installation is performed by machinists or tooling technicians using appropriate torque tools for Multimaster-style threaded tip connections. Always de-energize and lock out the machine spindle before changing milling tips. Inspect the holder threads and seating surface for wear or contamination before installing a new tip. Avoid over-torquing the tip connection, as sub-micrograin carbide is brittle and sensitive to improper clamping force.
