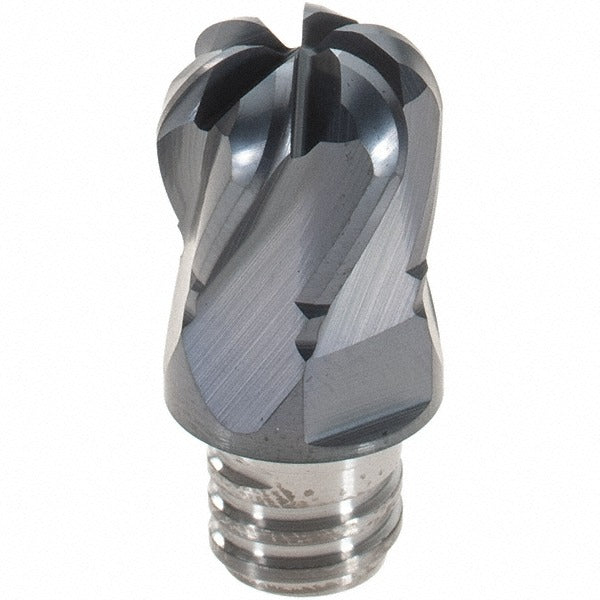

Iscar 5621365 Toroidal Milling Tip 12mm 6 Flute IC908

Product Description

The ISCAR 5621365 is a toroidal end-replaceable milling tip in the Multimaster MM ETR series, designed for use with compatible Multimaster modular tooling holders. Built from sub-micrograin carbide and finished with a PVD-applied TiAlN coating, this tip delivers thermal stability and wear resistance across a wide range of workpiece materials. The cutting diameter is 12 mm (0.4728 inches), the maximum depth of cut is 9 mm (0.3546 inches), and the functional length is 16.50 mm (0.6501 inches). With 6 flutes and a 30-degree helix angle, it is suited for productive milling in steel, stainless steel, cast iron, non-ferrous metals, superalloys, titanium, and hard materials. The manufacturer grade is IC908.

This tip is intended for use in machining environments where a right-hand, toroidal-profile milling insert is required at the MM ETR 120 size. Typical applications include finishing and semi-finishing operations in steel and stainless steel, as well as superalloy and hard-material milling where TiAlN coating provides heat resistance. The 90-degree lead angle and zero chamfer angle geometry suits side and face milling scenarios. It is sold individually (package quantity of 1) with a minimum order quantity of 2 units.

Key Features

• Toroidal tip geometry with 6 flutes and 30-degree helix angle for efficient chip evacuation
• Sub-micrograin carbide substrate with IC908 grade for toughness and edge stability
• PVD TiAlN coating for heat resistance in dry and near-dry machining
• 12 mm cutting diameter, 9 mm maximum depth of cut, 16.50 mm functional length
• Right-hand cut orientation; 90-degree lead angle with no chipbreaker
• Compatible with P, M, K, N, S, and H workpiece material groups per ISO classification

Compatibility

Designed for use with ISCAR Multimaster MM ETR series modular milling holders accepting the MM ETR 120A07R4.0 size tip. Conforms to ANSI standards. Coolant-through is not supported on this tip.

Installation Notes

Installation of Multimaster replaceable tips should be performed by a qualified machinist or tooling technician following the holder manufacturer torque and engagement procedures. Always ensure the machine spindle is fully stopped and the machine is in a safe, locked-out state before changing tips. Inspect the mating holder interface for wear, debris, or damage before seating the tip. Do not use damaged or out-of-tolerance holders, as improper seating can result in tip ejection during operation.
